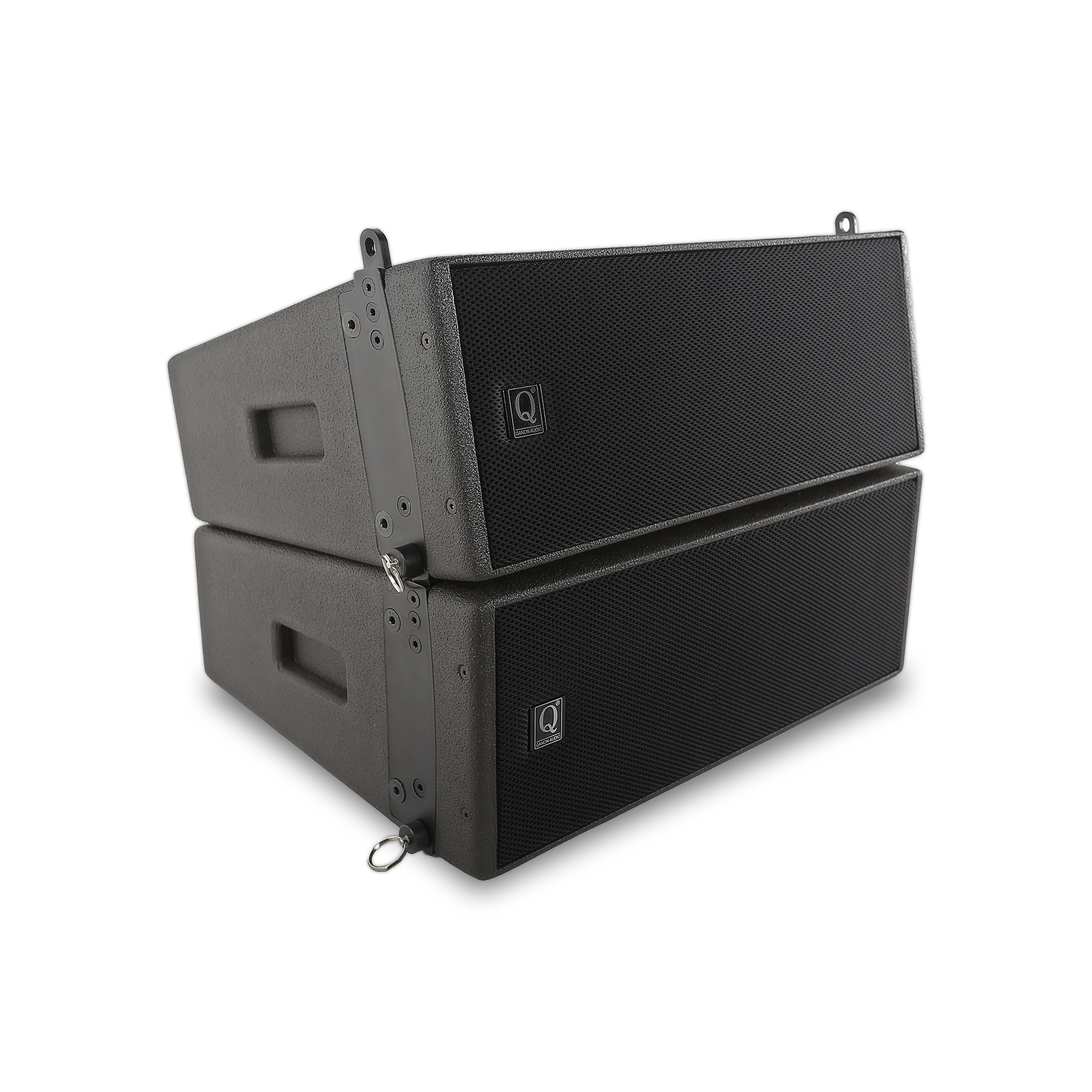

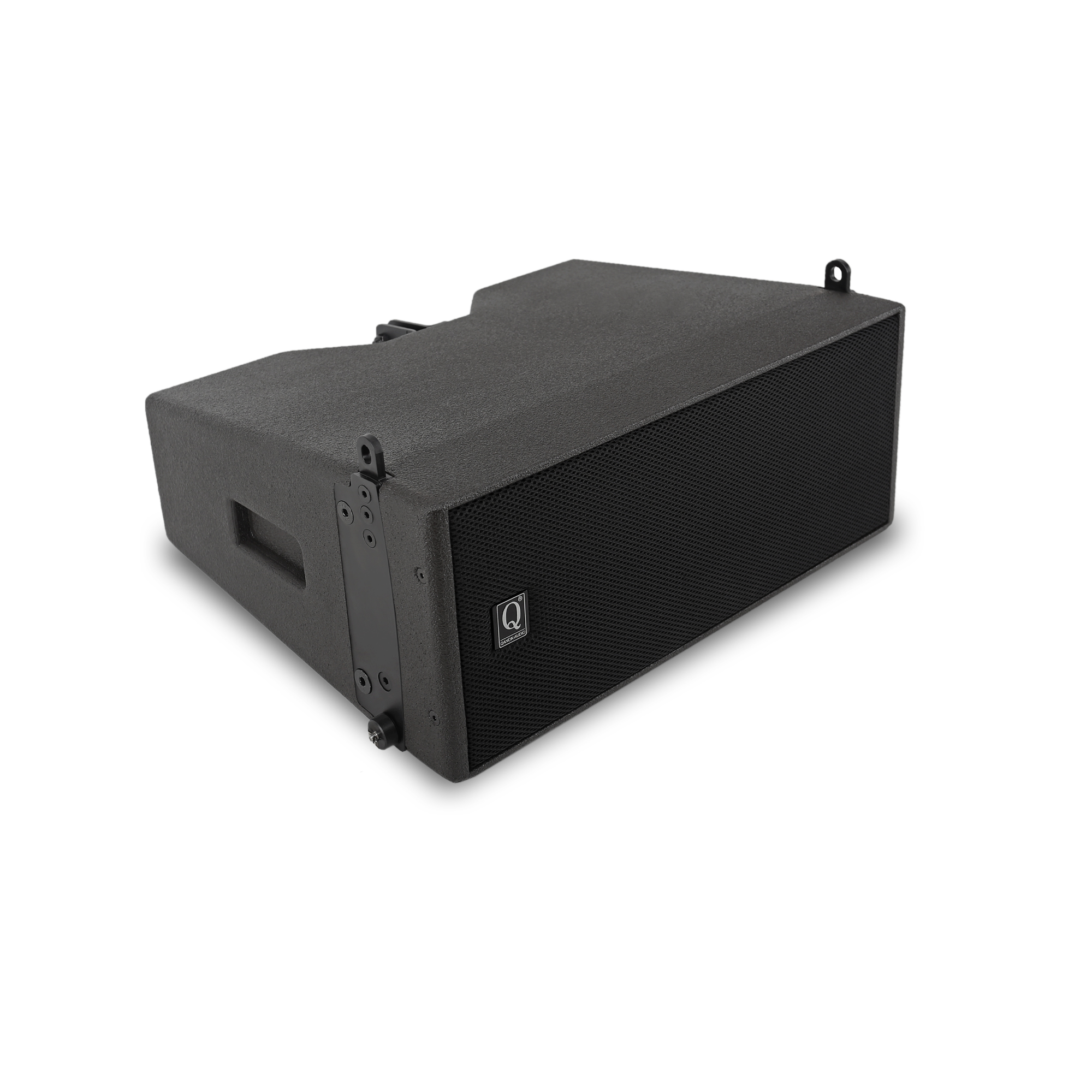

| Type | 2-way passive line source enclosure |
| Frequency Response(Preset) | 70Hz-20kHz |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [Vela] FOH / [Vela] FI / [Vela] Stack |
| Horizontal | 110° |
| Angle Increments | 0° 2° 4° 6° 8° 10° 12° |
| Drivers | LF:2×6.5" 51mm Voice Coil Neodymium |
| HF:1×1.75" 44mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF:300W |
| HF:60W | |
| Maximum Peak SPL | 138dB/1m |
| Nominal Impedance | 16Ω |

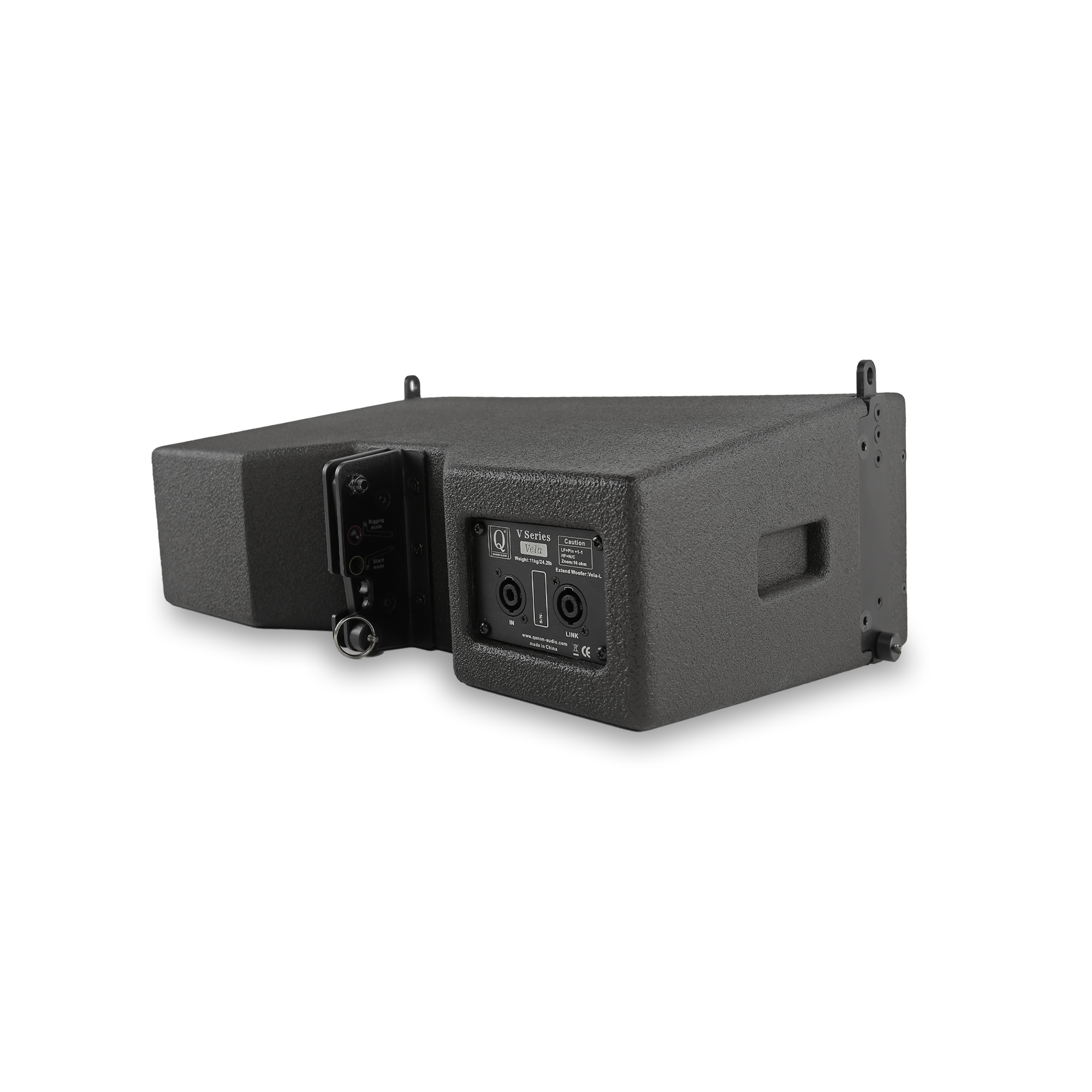

| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Height Front | 187mm |
| Height Back | 126mm |
| Width | 500mm |
| Depth | 350mm |
| Weight | 11kg / 24.2lbs |
| Rigging and Handling | |
| Handle | 2 ergonomic handles |
| Antiskid | N/C |
| Fastener | 3 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
Vela/VelaL-Bump | Suitable for Vela/VelaL enclosures |
 |
Vela Link-Part | Suitable for stacking and connecting with Vela enclosures Adjustable from 0 °,2 ° ,4 °,6 ° |
 |
Vela Stand-Bar | Suitable for Vela enclosures, Stand for VelaL |
 |
U-shaped shackle | 2t 1/2 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 1T/1m spanset used for connect shackles, used for front and rear |
 |
Vela Touring Flight Case | Accommodate 4 Vela Dimensions（W x H x D）：875 x 705 x 615mm |
 |
Vela/VelaL Stack-Cover | 4 Vela 2 VelaL |
 |
Vela/VelaL Rigging-Cover | 1、4-6 Vela（1.2m）length 2、8 Vela（1.6m）length |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-0.5（0.5meter） 3、2Pin-NL4-1（1meter） 3、2Pin-NL4-15（15meter） 4、2Pin-NL4-25（25meter） |
