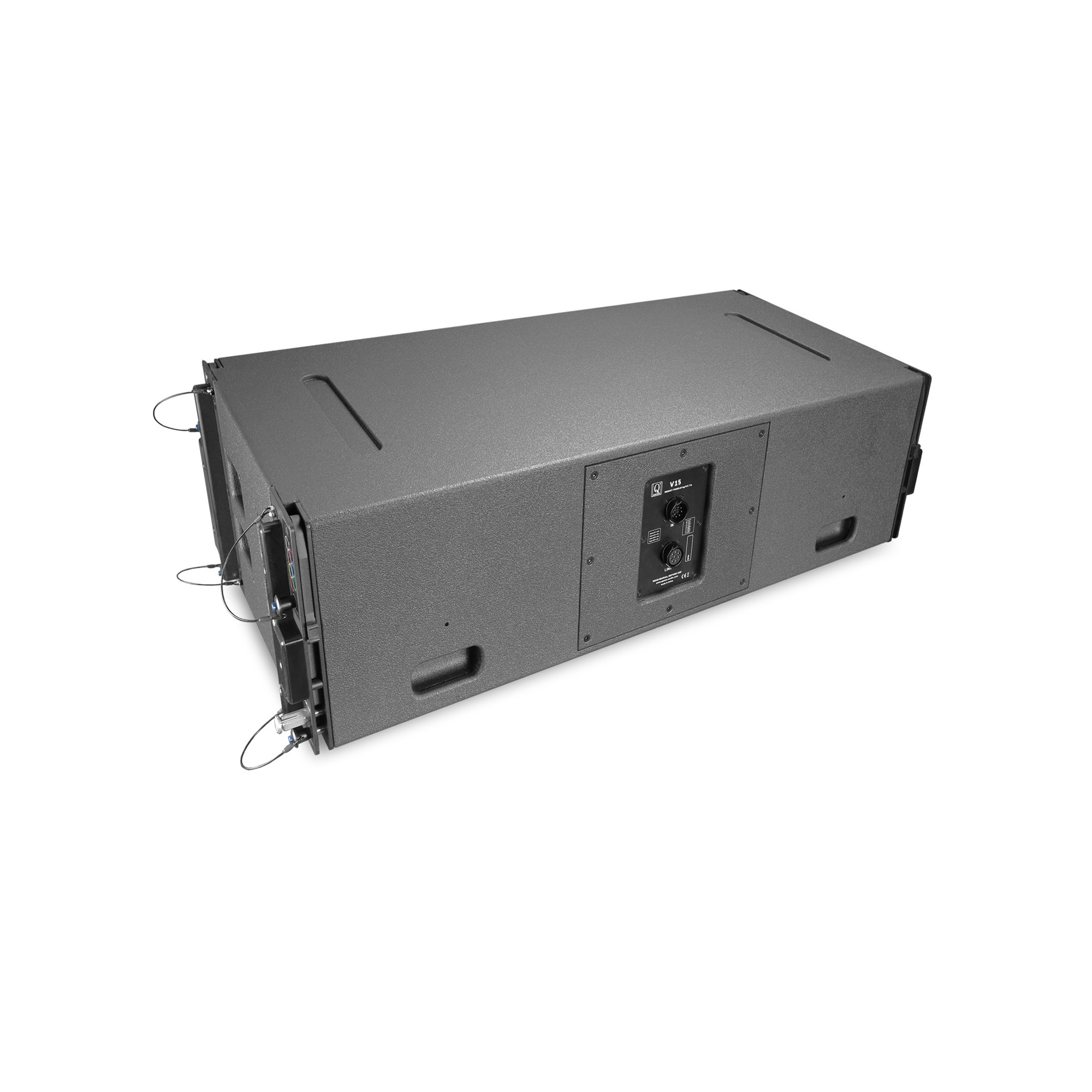

| Type | 3-way Bi-amp line source enclosure |
| Frequency Response(Preset) | 40Hz-20kHz |
| Amplifier Recommend | VDA18 / C18 |
| Preset | [V15] FOH |
| Horizontal | 90° |
| Angle Increments | 0° 1° 2° 3° 4° 5° 6° |
| Drivers | LF:2×15" 100mm Voice Coil Neodymium |
| MF:4×6.5" 51mm Voice Coil Neodymium | |
| HF:3×3" 75mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF:2 X 600W |
| MF:600W | |
| HF:330W | |
| Maximum Peak SPL | 148dB/1m |
| Nominal Impedance | LF1:8Ω / LF2:8Ω / MF:8Ω / HF:8Ω |
| Connections | IN: 1 x 8-point PA-COM® / LINK: 1 x 8-point PA-COM® |
| Pin Connections | LF1=A/B LF2=C/D MF=E/F HF:G/H |
| Height Front | 445mm |
| Height Back | 387mm |
| Width | 1200mm |
| Depth | 550mm |
| Weight | 82kg / 180.7lbs |
| Rigging and Handling | |
| Handle | 6 ergonomic handles |
| Antiskid | 2 ground runners |
| Fastener | 4 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark grey |
| Front | Polyester powder-coated steel grill |
| Rigging | steel |
| Protection rating | IP55 |
 |
V15/V12/V25 Bump-Bar | Suitable for V15/V12/V25 enclosures, with extend Bar |
 |
Laser+Receiver | Adopting high-precision digital sensor+20mw point far-field fixed focus coaxial laser |
 |
V15/V12 DF V310/V10 Convert Bump | Suitable for V310/V10 enclosures, DownFill for V15/V12 |
|
V15/V12 DF Voe Convert Bump | Suitable for Voe enclosures, DownFill for V15/V12 |
 |
V15/V12-DELTA | Allows for horizontal aiming using two motors on the back or front of the array. |
 |
V15/V12/V25 Bump-Bar Flight Case | Accommodate 2 Bump / 2 Bar, and hanging equipment accessories |
 |
U-shaped shackle | 3.25t 5/8 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 2T/2m spanset used for connect shackles, used for front and rear |
 |
V15/V12-Trolley | The trolley can accommodate 4 stacked V15/V12 enclosures, combined with a hanging rigging system |
 |
V15-Cover | Cover for 4x V15 enclosures stacked on V15 Trolley |
|
V12-Cover | Cover for 4x V12 enclosures stacked on V12 Trolley |
 |
V15/V12/V25 Rigging-Cover | 1、8-12 V15（6m）length 2、14-18 V15（8.5m）length |
 |
VDA18-Rack | 9U rack mounted with 3 VDA18 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution |
 |
C18-Rack | 9U rack mounted with 3 C18amplifiers、1 DF36 Audio Processor, Qanon Audio DS3 Three-Phase Power distribution |
 |
8-Pin 8*4㎡ PA-COM Speaker Cables | 1、PA-COM-0.7（0.7meter） 2、PA-COM-10（10meter） 3、PA-COM-15（15meter） 4、PA-COM-25（25meter） |
 |
8-Pin PA-COM Adapter | Male/Female |
