| Type | Passive 2-way Coaxial Enclosure |
| Frequency Response(Preset) | 60Hz-20kHz |
| Amplifier Recommend | VDA14 / VDA12 / VDA4 |
| Preset | [TC12] / [TC12_MO] |
| Horizontal | 80° |
| Vertical | 80° |
| Monitor Angle | 55°(1) |
| 20°(2) | |
| Drivers | LF：1×12" 65mm Voice Coil Ferrite |
| HF：1×1.75" 65mm Voice Coil Ferrite | |
| Handling Power (RMS) | LF：200W |
| HF：30W | |
| Nominal Impedance | LF:8Ω / HF:8Ω |
| Maximum Peak SPL | 128dB/1m |

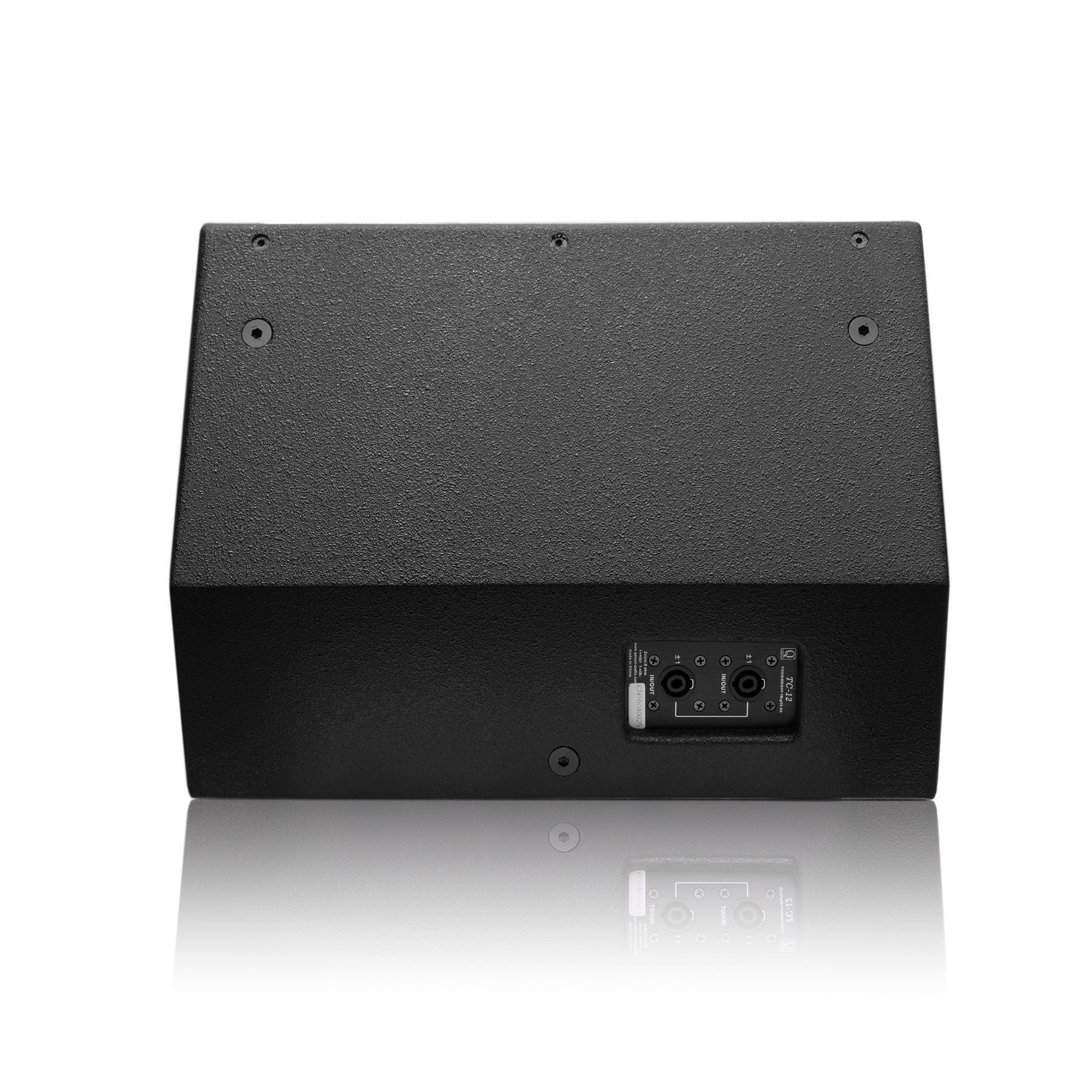

| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Width | 447mm |
| Height | 488mm |
| Depth | 310mm |
| Weight | 16kg / 35.2lbs |
| Rigging and Handling | |
| Handle | 2 handles |
| Threaded | 13x M8 threaded insert |
| Pole socket | 1x 35mm Pole socket |
| stand bar | 4x 10mm*38mm(H*⌀) |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Black |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP45 |
 |
Eyebolt | M8*30 lifting ring, used for connecting with buckle ring |
 |
TC12 Touring Flight Case | Accommodate 2 TC12 Dimensions（W x H x D）：685 x 645 x 395mm |
 |
TC12 Touring Flight Case | Accommodate 4 TC12 Dimensions（W x H x D）：685 x 645 x 790mm |
 |
TC12-Cover | 1 TC12 |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
VDA12 | 16Ω：4 x 600W RMS 8Ω：4 x 1200W RMS 4Ω/2.7Ω：4 x 2000W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%，50-60 Hz |
 |
VDA4 | 16Ω：4 x 200W RMS 8Ω：4 x 400W RMS 4Ω/2.7Ω：4 x800W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%，50-60 Hz |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-5（5meter） 3、2Pin-NL4-10（10meter） 3、2Pin-NL4-15（15meter） 4、2Pin-NL4-25（25meter） |
