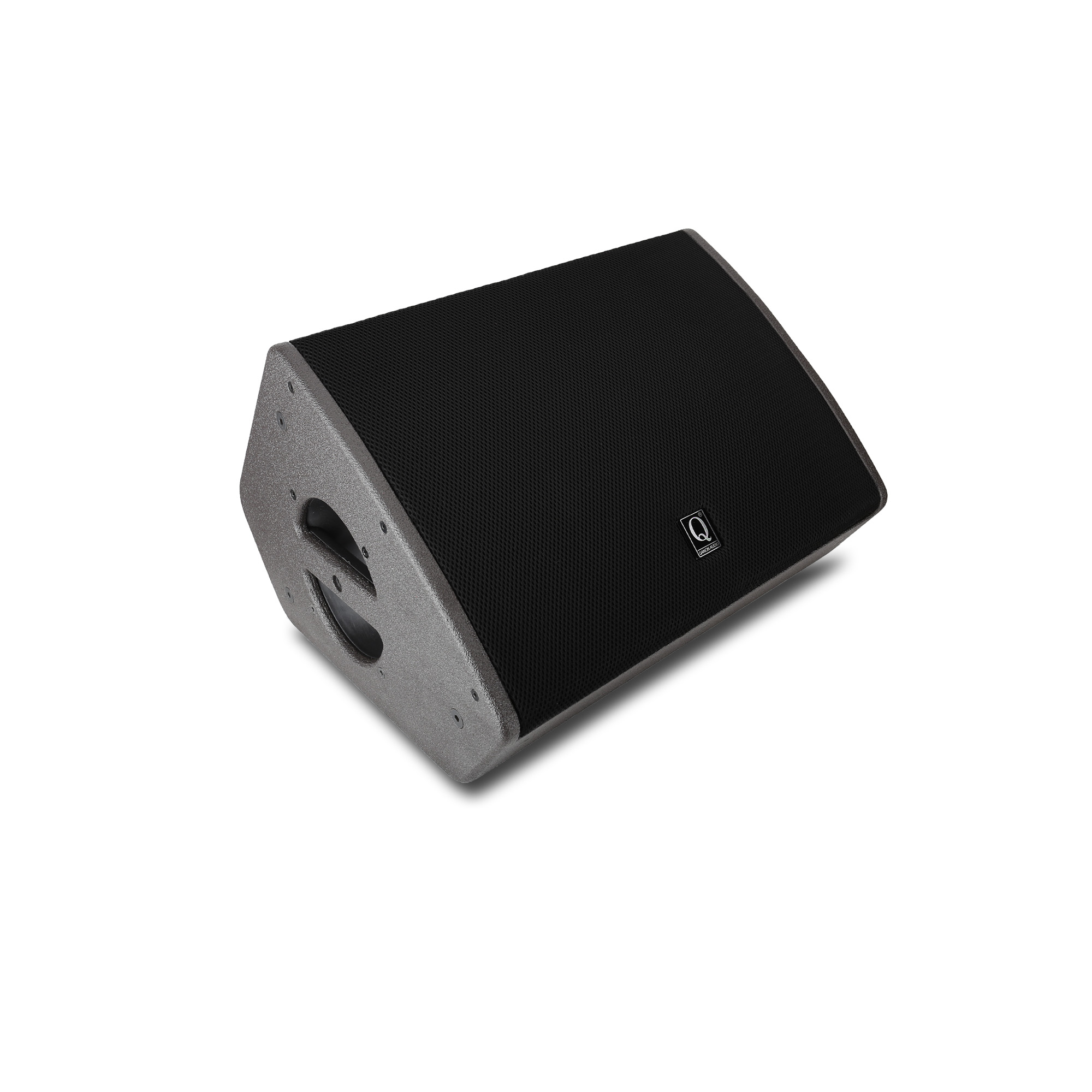

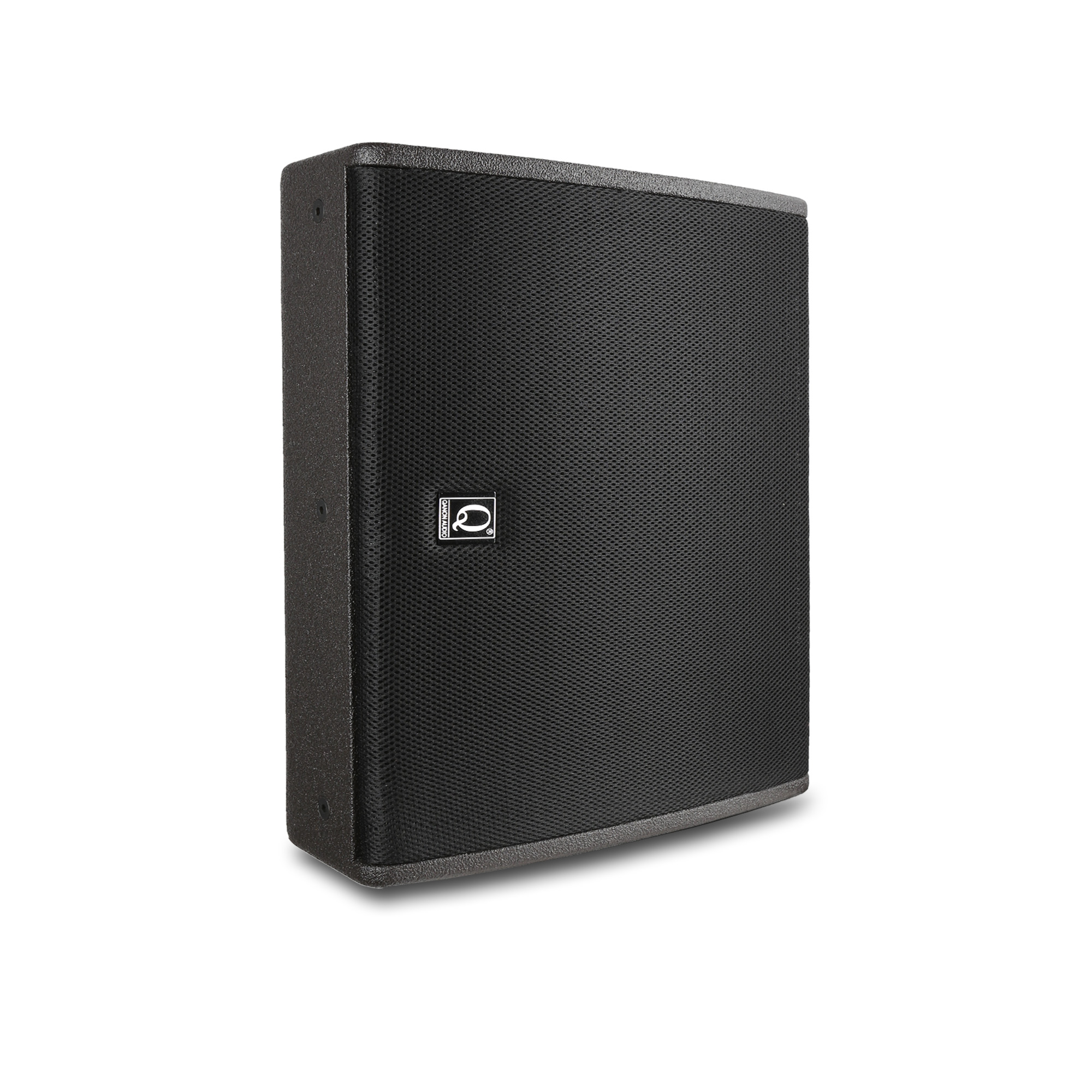

| Type | Passive 2-way Coaxial Enclosure |
| Frequency Response(Preset) | 60Hz-20kHz(-10dB) |
| Amplifier Recommend | VDA18 / VDA14 / VDA12 |
| Preset | [M12] / [M12_MO] |
| Horizontal | 40° |
| Vertical | 60° |
| Monitor Angle | 55°(1) |
| 0°(2) | |
| Drivers | LF：1×12" 75mm Voice Coil Neodymium |
| HF：1×3" 75mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF：350W |
| HF：80W | |
| Maximum Peak SPL | 136dB/1m |
| Nominal Impedance | LF:8Ω / HF:8Ω |

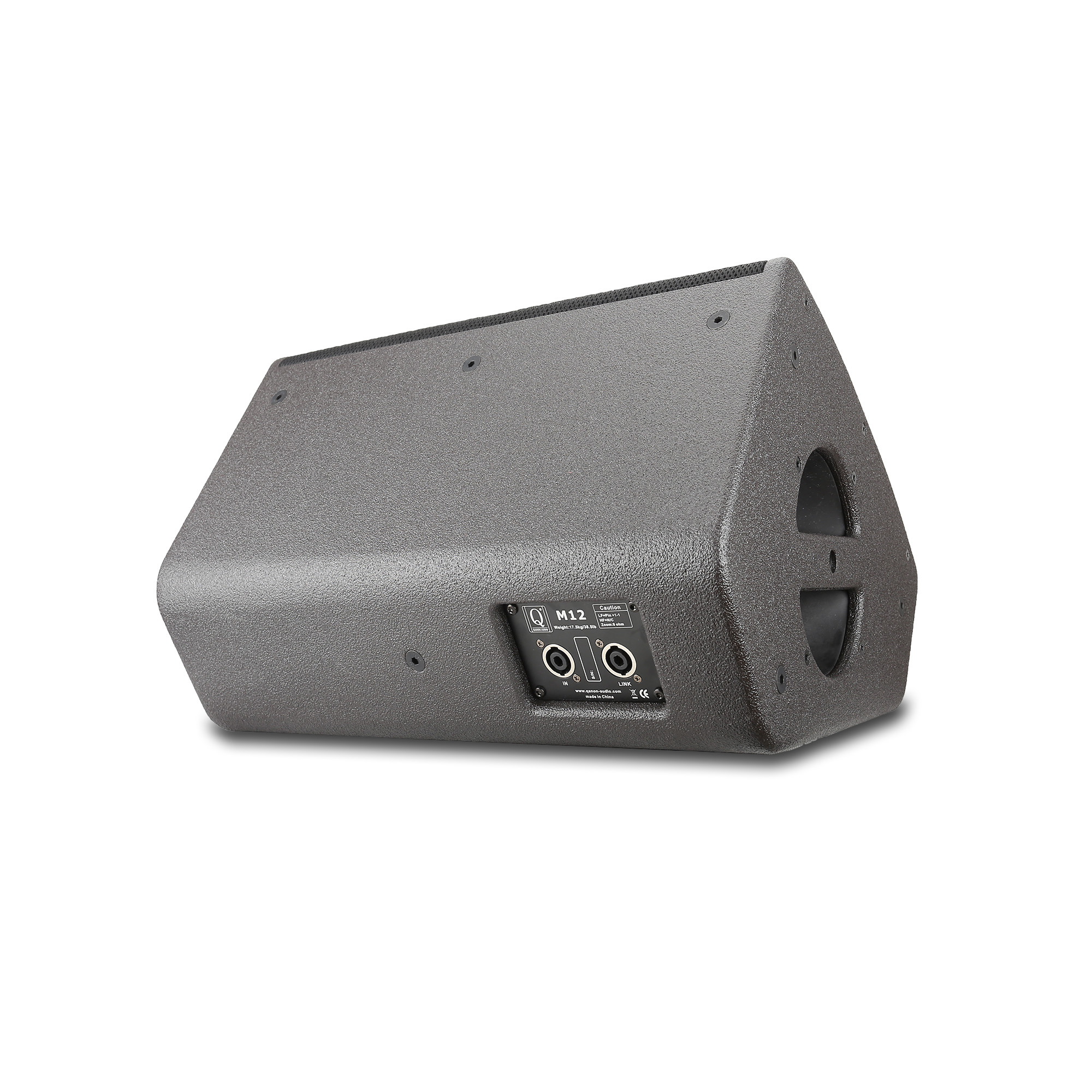

| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Width | 350mm |
| Height | 480mm |
| Depth | 295mm |
| Weight | 15kg / 33lbs |
| Rigging and Handling | |
| Handle | 2 handles |
| Threaded | 13x M8 threaded insert |
| Pole socket | 2x 35mm Pole socket |
| stand bar | 4x 10mm*38mm(H*⌀) |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
M12-UL | Suitable for M12 enclosures |
 |
M12-ULi | Suitable for M12 enclosures |
 |
Lighting Hook | Suitable for connecting UL/ULi hangers |
 |
Eyebolt | M8*30 lifting ring, used for connecting with buckle ring |
 |
M12 Touring Flight Case | Accommodate 2 M12 Dimensions（W x H x D）：685 x 645 x 395mm |
 |
M12 Touring Flight Case | Accommodate 4 M12 Dimensions（W x H x D）：685 x 645 x 790mm |
 |
M12-Cover | 1 M12 |
 |
VDA18-Rack1 | 3U rack mounted with 1 VDA18 amplifiers, and 1 SCN Signal panel |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-5（5meter） 3、2Pin-NL4-10（10meter） 3、2Pin-NL4-15（15meter） 4、2Pin-NL4-25（25meter） |
