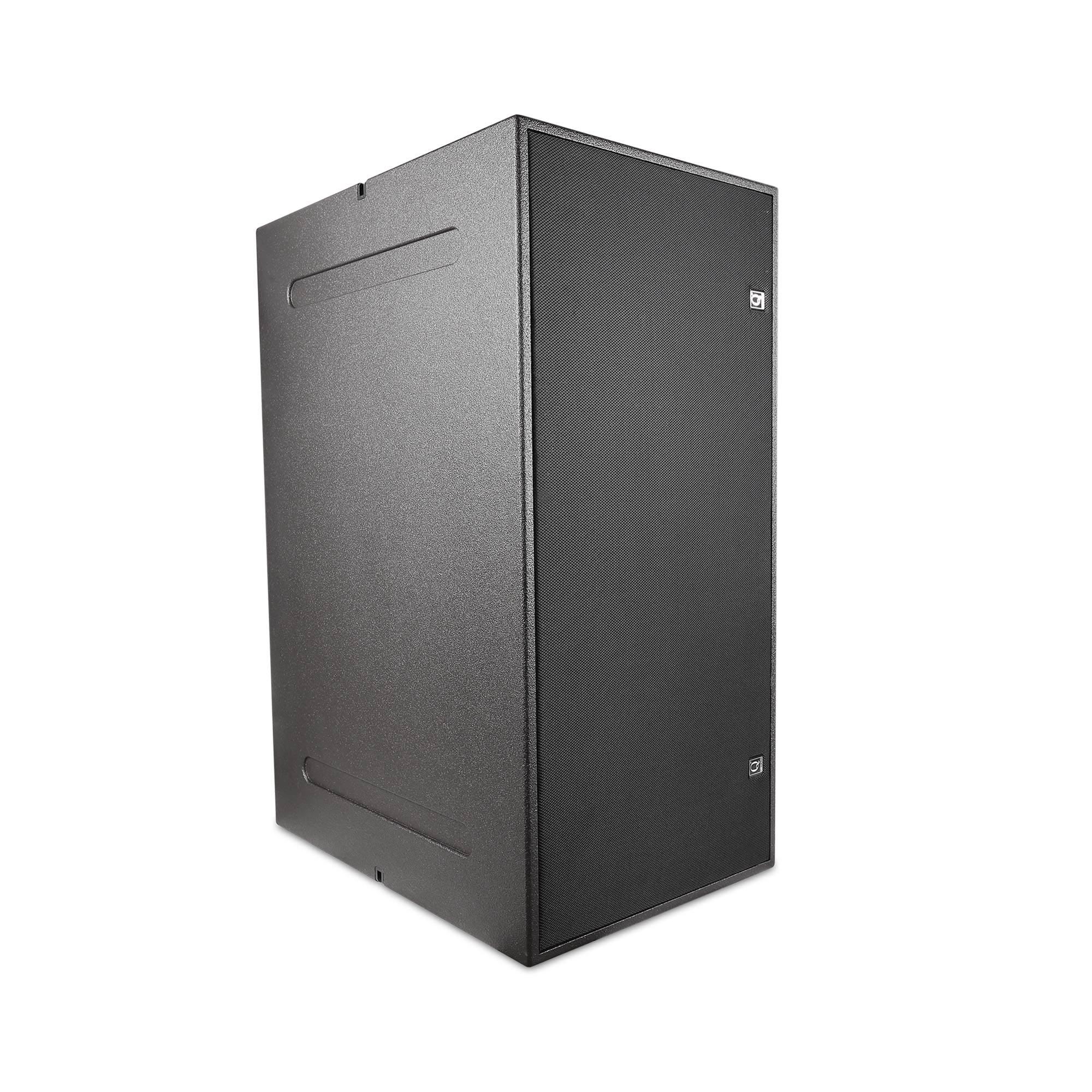

Type Subwoofer
Frequency Response 23Hz-200Hz
Amplifier Recommend VDA18 / C18 / C15
Preset [VS221_60/C] [VS221_80/C]
Horizontal 360°
Drivers LF：2×21" 115mm voice coil（Ferrite）
Handling Power (RMS) LF：1600W
Maximum Peak SPL 145dB/1m
Nominal Impedance LF:4Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1
Height Front 600mm
Height Back 600mm
Width 1200mm
Depth 800mm
Weight 108kg / 238lbs
Rigging and Handling
Handle 4 ergonomic handles
Antiskid 4 ground runners
Fastener N/C
Physical Data
Material Baltic Birch Plywood
Finish Dark Grey
Front Polyester powder-coated steel grill
Rigging N/C
Protection rating IP45
