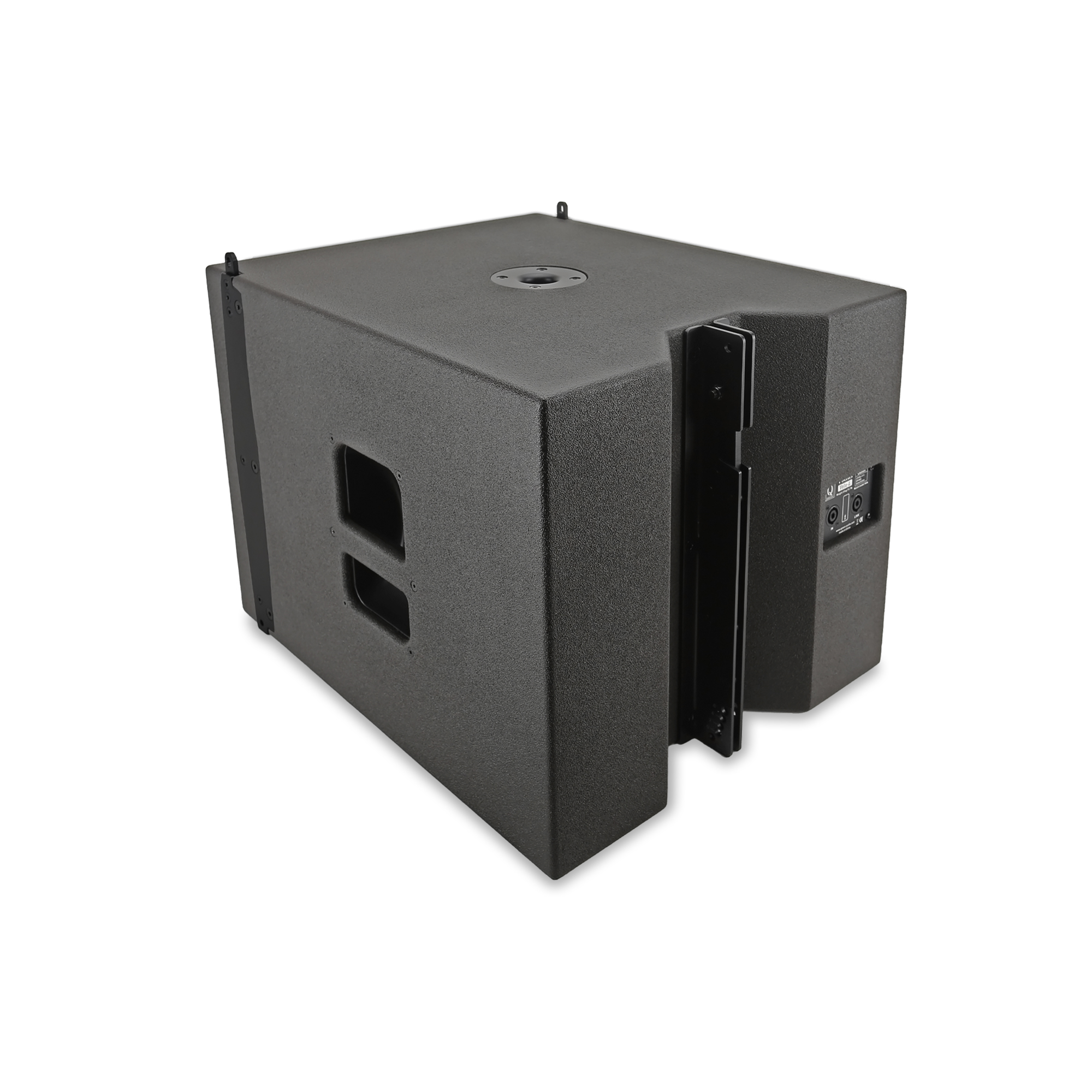

| Type | Ultra compact Extend woofer |
| Frequency Response(Preset) | 36Hz-200Hz |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [Vela-L_100] [Vela-L_125] [Vela-L_160] |
| Horizontal | 360° |
| Angle Increments(Vela) | 0° 2° 4° 6° |
| Drivers | LF:1×15" 100mm Voice Neodymium |
| Handling Power (RMS) | LF:600W |
| Maximum Peak SPL | 134dB/1m |
| Nominal Impedance | LF:8Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Height Front | 450mm |
| Height Back | 450mm |
| Width | 500mm |
| Depth | 600mm |
| Weight | 33kg / 72.7lbs |
| Rigging and Handling | |
| Handle | 2 ergonomic handles |
| Pole socket | 1 x 35mm Pole socket |
| Fastener | 3 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
Vela/VelaL-Bump | Suitable for Vela/VelaL enclosures |
 |
Vela Link-Part | Suitable for stacking and connecting with Vela enclosures Adjustable from 0 °,2 ° ,4 °,6 ° |
 |
Vela Stand-Bar | Suitable for Vela enclosures, Stand for VelaL |
 |
U-shaped shackle | 2t 1/2 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 1T/1m spanset used for connect shackles, used for front and rear |
 |
VelaL-Trolley | The trolley can accommodate 2 stacked VelaL enclosures, combined with a hanging rigging system |
 |
VelaL-Cover | Cover for 2x VelaL enclosures stacked on VelaL Trolley |
 |
VelaL Touring Flight Case | Accommodate 1 VelaL Dimensions（W x H x D）：615 x 705 x 650mm |
 |
Vela/VelaL Stack-Cover | 4 Vela 2 VelaL |
 |
Vela/VelaL Rigging-Cover | 1、4-6 Vela（1.2m）length 2、8 Vela（1.6m）length |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-0.5（0.5meter） 1、2Pin-NL4-1（1meter） 2、2Pin-NL4-15（15meter） 3、2Pin-NL4-25（25meter） |
