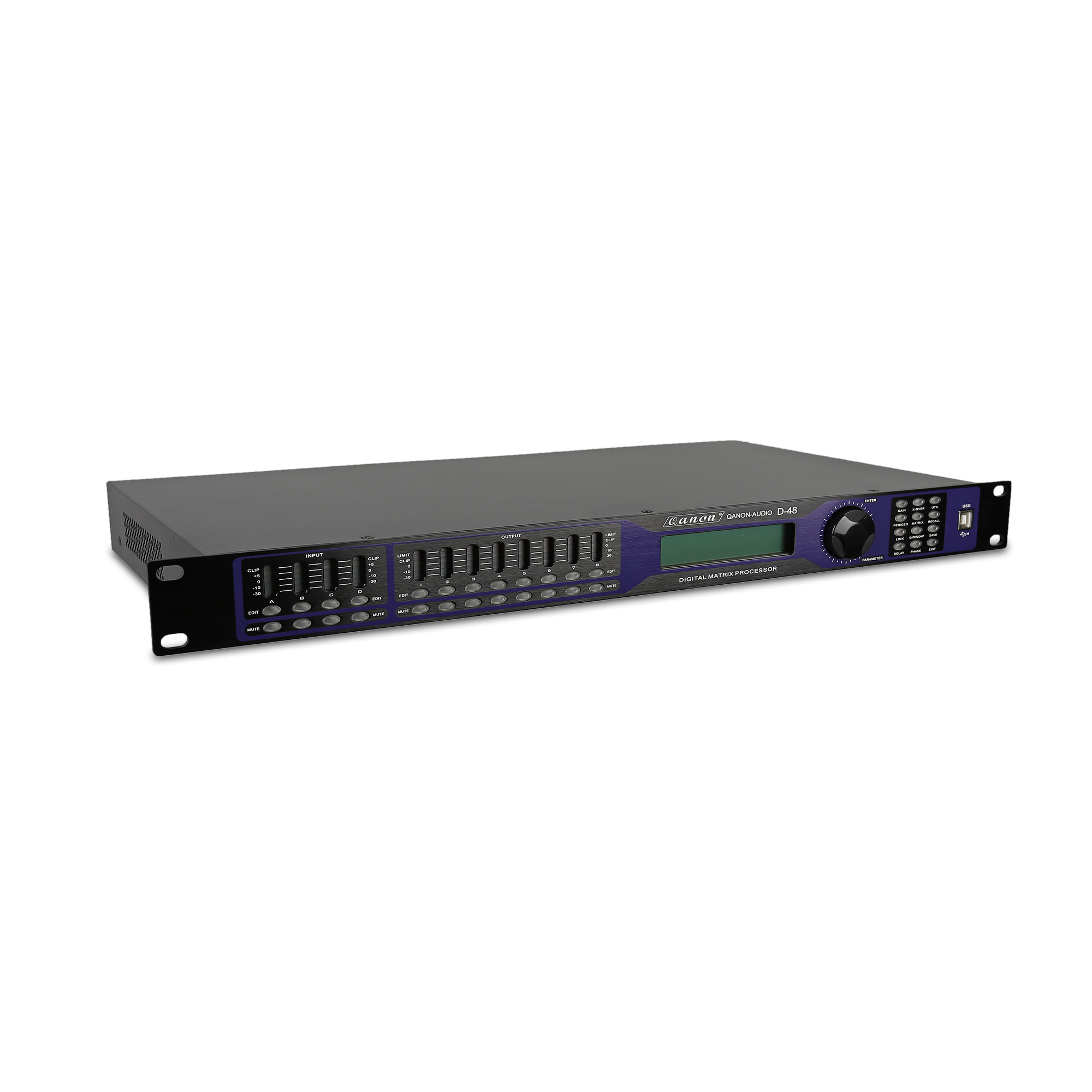

DSP Digital Processor 4 Input 8 Output
Frequency Response 20Hz-20kHz,-0.3dB
Dynamic Range >115dBu
T.H.D <0.005% at 1kHz（0dBu）
Crosstalk >70dBu，20Hz-20kHz
C.M.R.R. >75dBu 1KHz

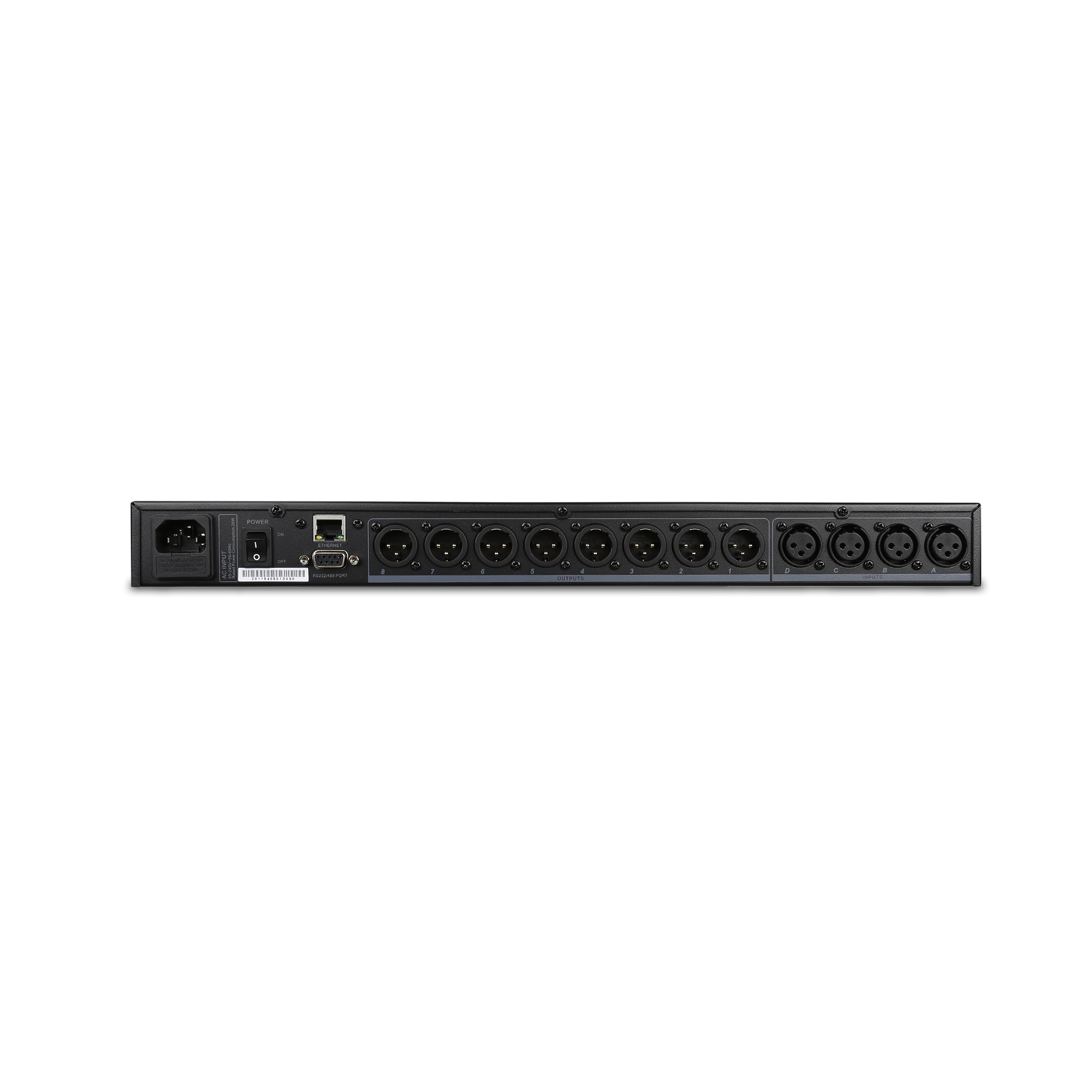

Input section
Type XLR connect Balanced
Maximum Input Level   +18dBu
Impedance 1MΩ/stereo; 500KΩ/Mono
Output section
Type XLR connect Balanced
Maximum output level +18dBu
Impedance <500Ω
Digital processing
Processing DSP 24 bit sigma-delta A/D、D/A convert
32 bit DSP，96kHz sampling rate

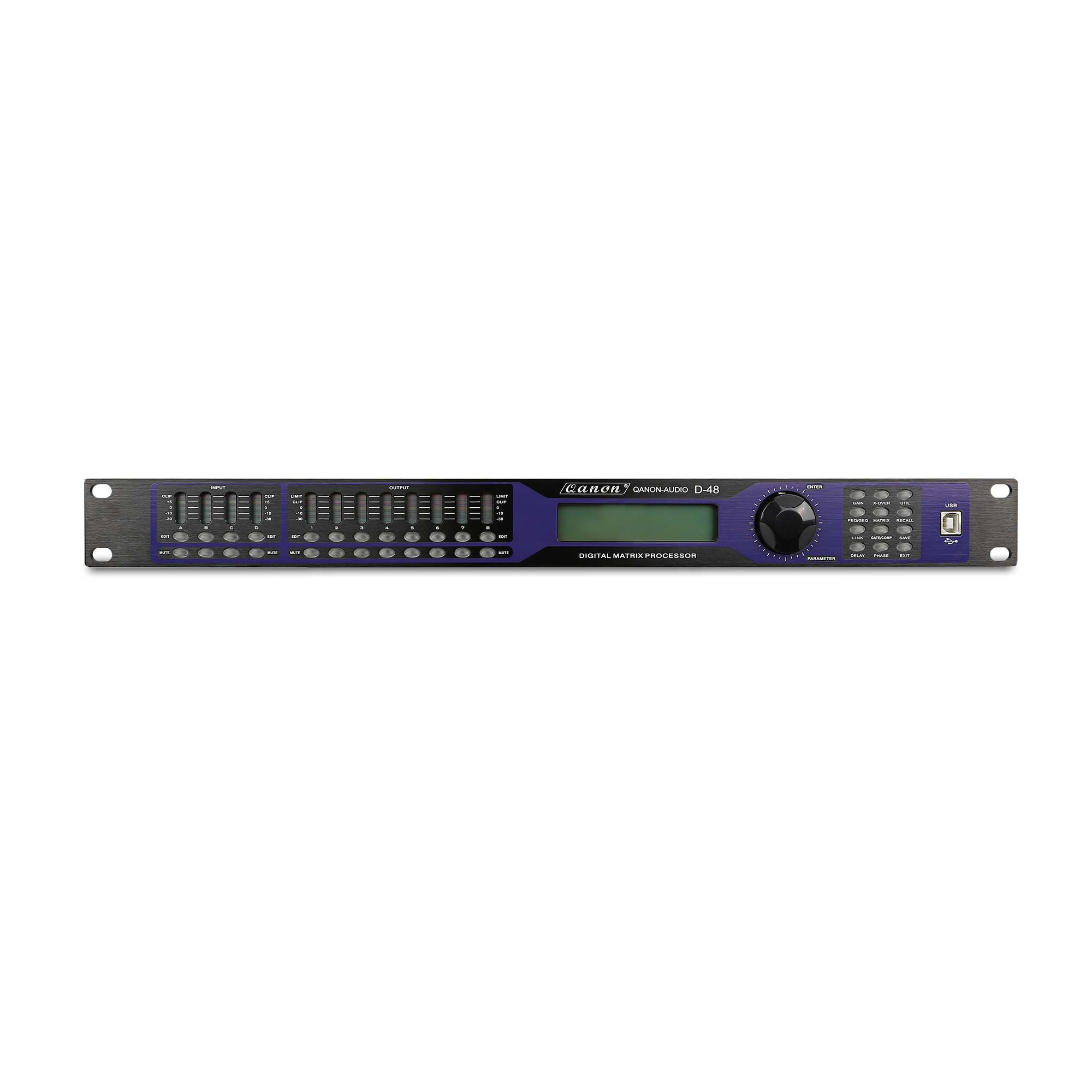

Display 20x2 characters LCD display all settings
Power supply AC 95V-250V  50/60Hz
Physical data
Dimensions（W x H x D） 483 x 44 x 305 mm
Material Metal
Finish Black
Protection rating IP2x
Weight 2.6kg / 5.7lb
