Type Class D
Number of amplifier channels 4 Channel
Peak total output all channels driven 14400W
1KHz,0.01% THD+N Max.Output stereo mode 8Ω 1800W*4ch
1KHz,0.01% THD+N Max.Output stereo mode 4Ω 2800W*4ch
1KHz,0.01% THD+N Max.Output stereo mode 2.7Ω 3600W*4ch
1KHz,0.01% THD+N Max.Output bridge mode 8Ω 5400W*2ch
1KHz,0.01% THD+N Max.Output bridge mode 4Ω 7200W*2ch
Performance
Frequency Response 10Hz - 20KHz / ±0.35dB
THD+N ≤0.5% @ 8Ω1kHz
Signal to Noise Ratio >99dB
Cross Talk(1kHz) >70dB
Slew Rate >30v/μs
Damping Factor >3000 （8Ohm） 20Hz to 100Hz
Voltage Gain 43.3dB (0,775V:113V)
Sensitivity 0.775V,1V,1.4V,2V
Input Impedance 10K Ω balance/ 20K Ω unbalance
Protection rating short-circuit, DC,overload, overheat,ultrasonic, RF, voltage peak limiter
Voltage 110V/220V available
Fuse F-30A
Static Power <155W
Max Static Power <6000W

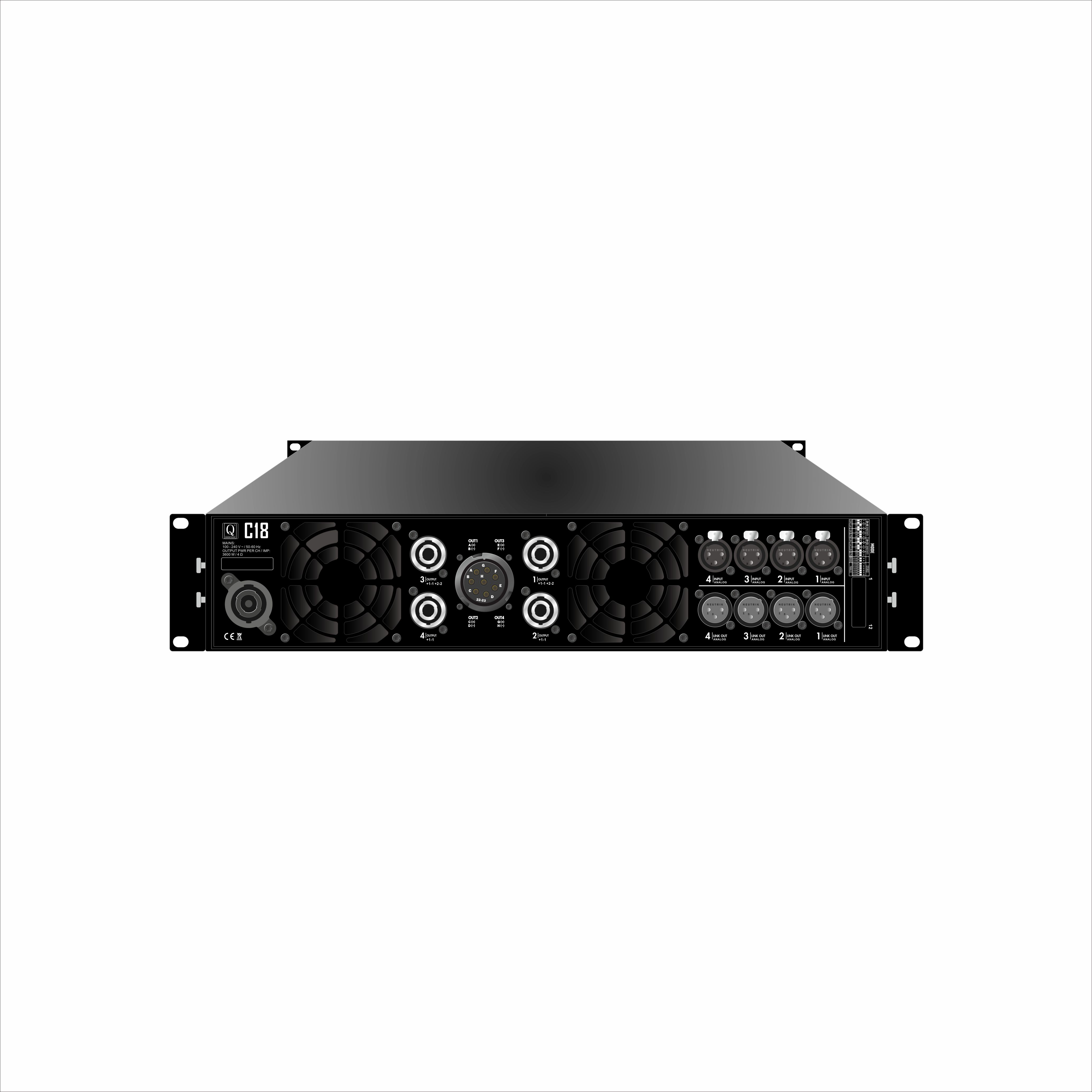

Connecters
Analog Input 4 x female Neutrik® XLR3 (IN)
Analog LINK 4 x male Neutrik® XLR3 (LINK)
SpeakOn Connecters 4 x Neutrik® NL4
8-Pin PA-COM Connecters 1 x 8-Pin PA-COM
Main Power Supply 170V～220V，50Hz/60Hz
Physical data
Dimensions（W x H x D） 483 x 44 x 375 mm
Material Metal
Finish Black
Protection rating IP2x
Weight 16kg / 35.2lbs
