| Type | Passive 2-way Colinear source |
| Frequency Response(Preset) | 90Hz - 20kHz |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [Avi] |
| Horizontal | 110° (>1 kHz) |
| Vertical | 0° / -45° in J shape (> 1 kHz) |
| Drivers | LF：4×5" 38mm Voice Coil Neodymium |
| HF：2×1.75" 44mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF：320W |
| HF：120W | |
| Maximum Peak SPL | 134dB/1m |
| Nominal Impedance | LF：8Ω |
| Connectors | 2 x NL4 SpeakOn |
| Pin Connectors | IN = LF:+1-1 |
| LINK = LF:+1-1 | |
| Height Front | 800mm |
| Height Back | 800mm |
| Width | 170mm |
| Depth | 210mm |
| Weight | 12kg / 26.4lbs |
| Rigging and Handling | |
| Threaded | 6x M6 threaded insert |

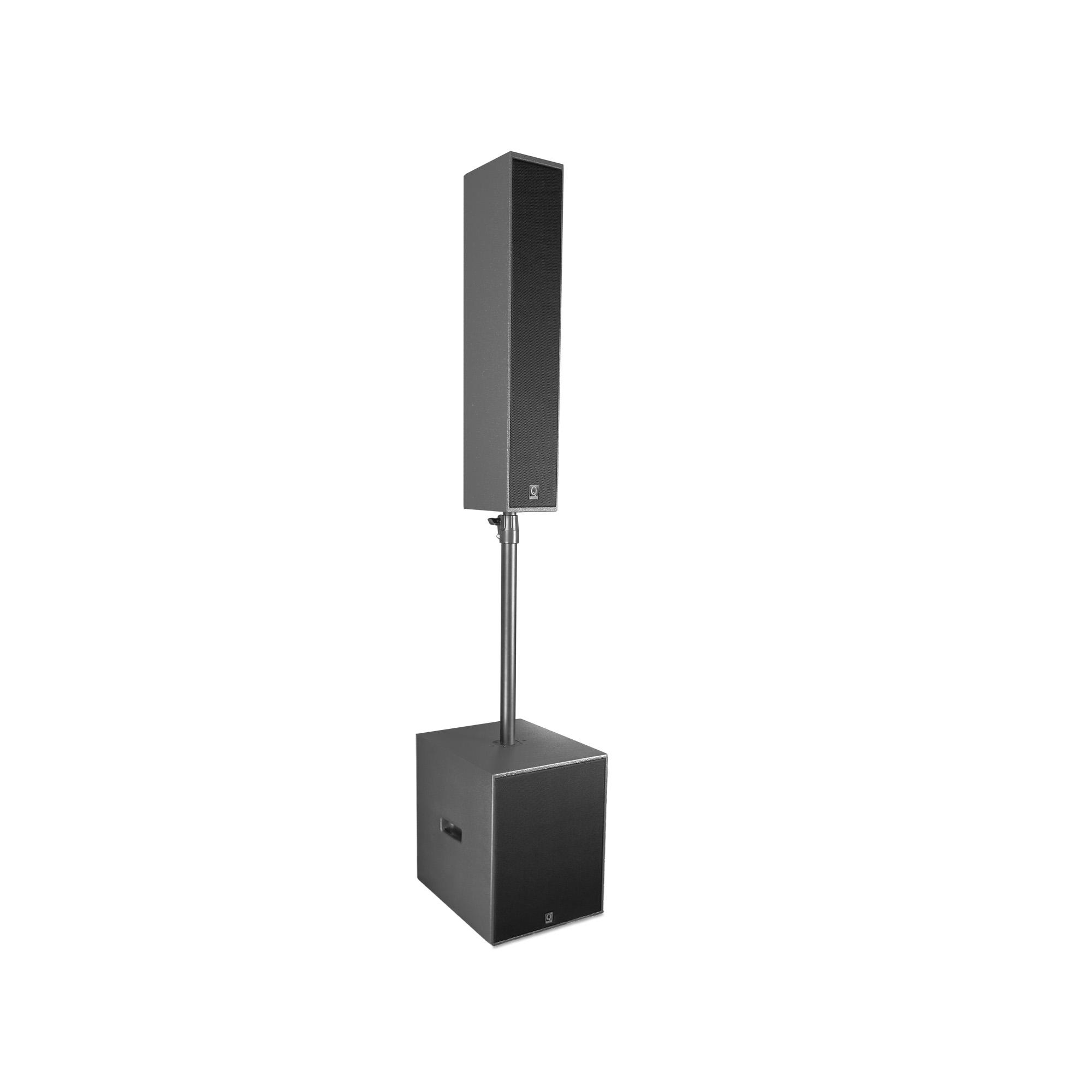

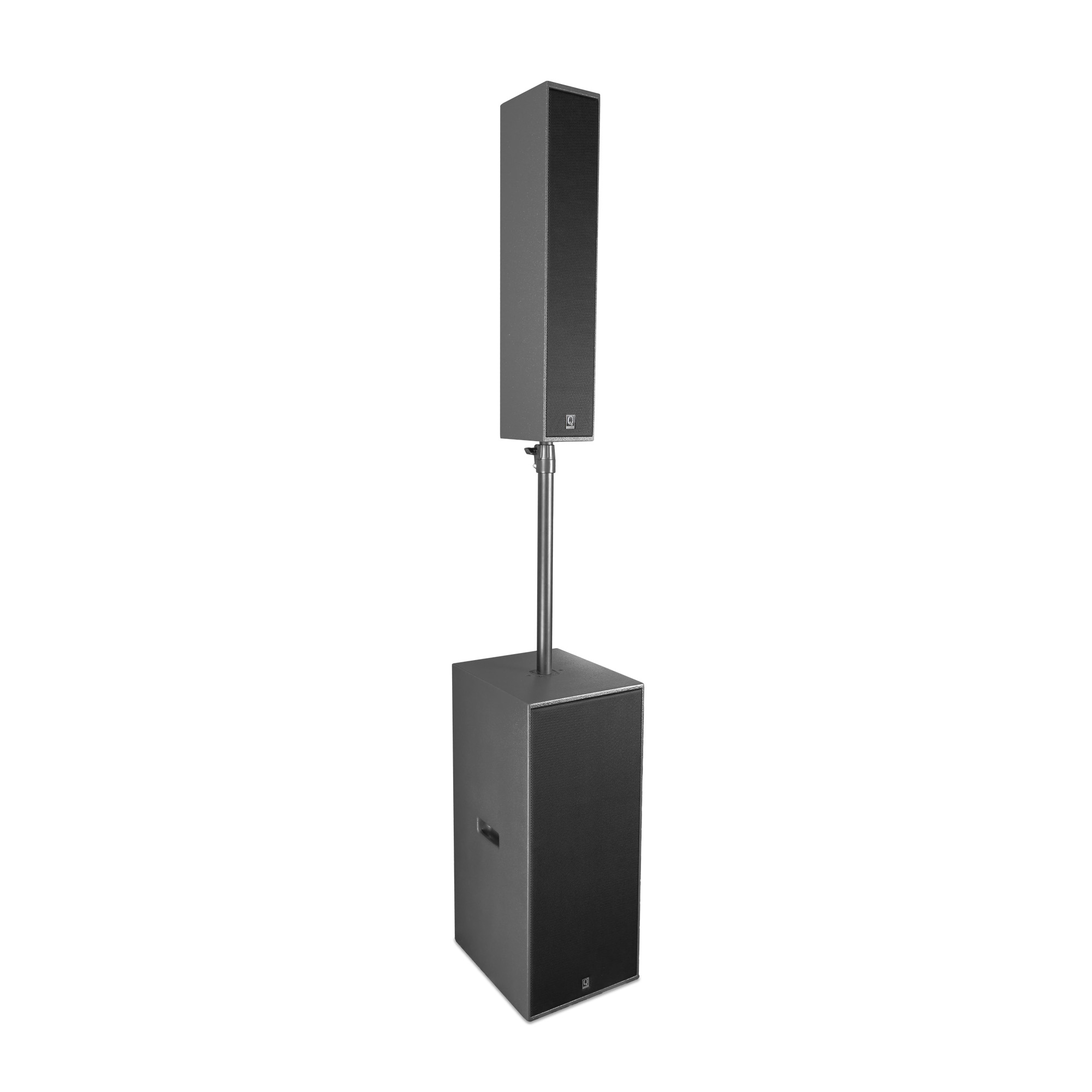

| Pole socket | 1x 35mm Pole socket |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
