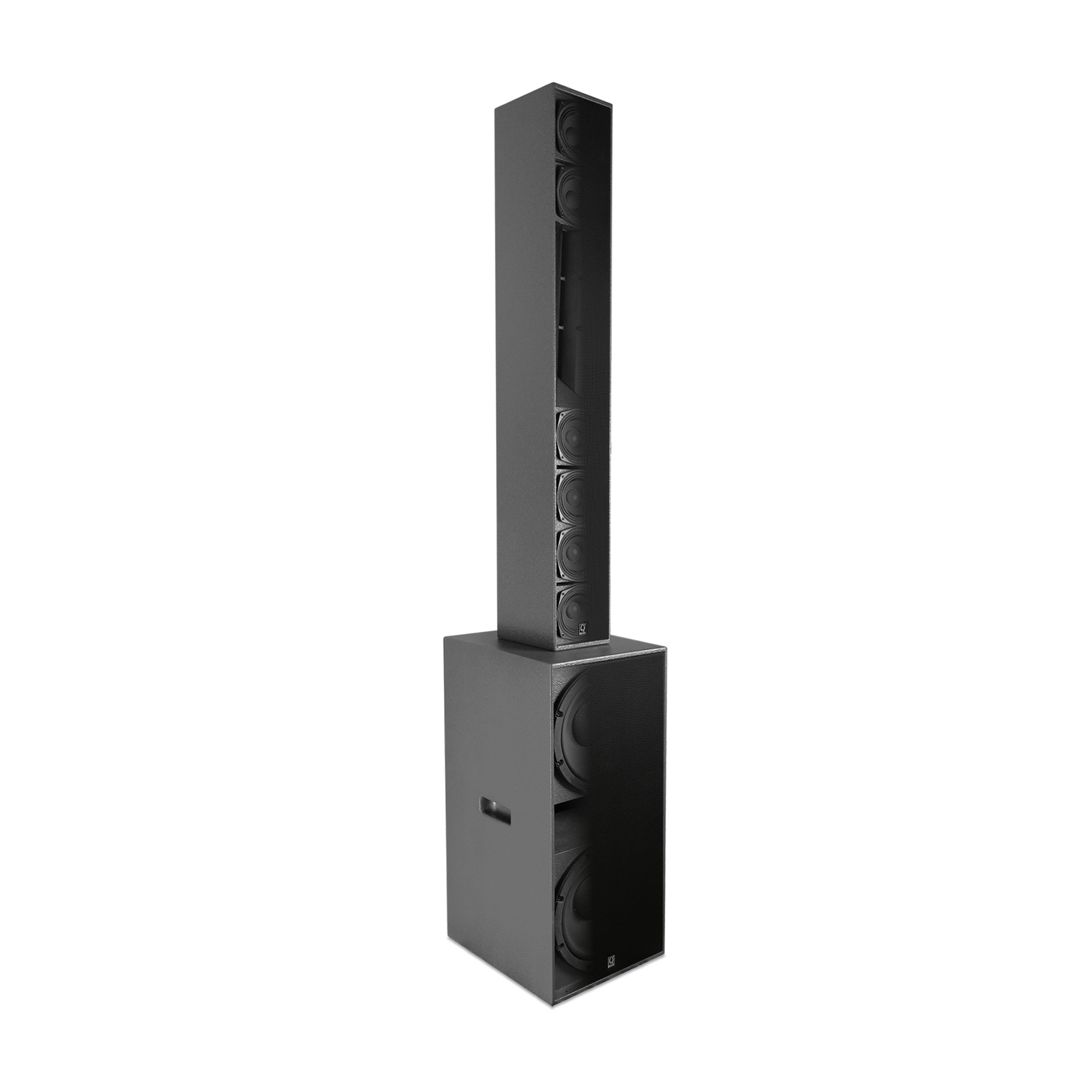

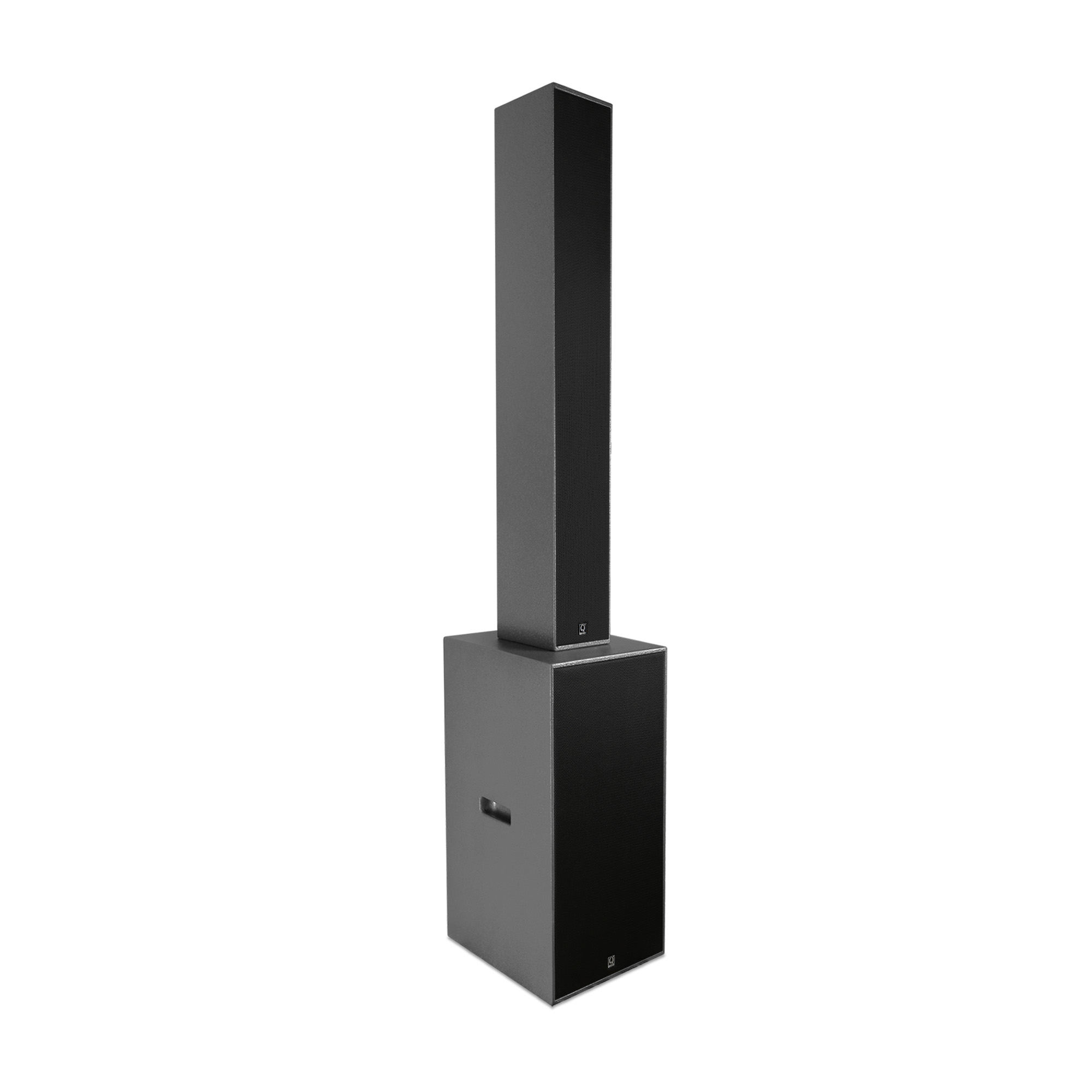

| Type | Passive 2-way Colinear source |
| Frequency Response(Preset) | 86Hz - 20kHz(-10dB) |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [AngelLow] |
| Horizontal | 110° (>1 kHz) |
| Vertical | 0° / -45° in J shape (> 1 kHz) |

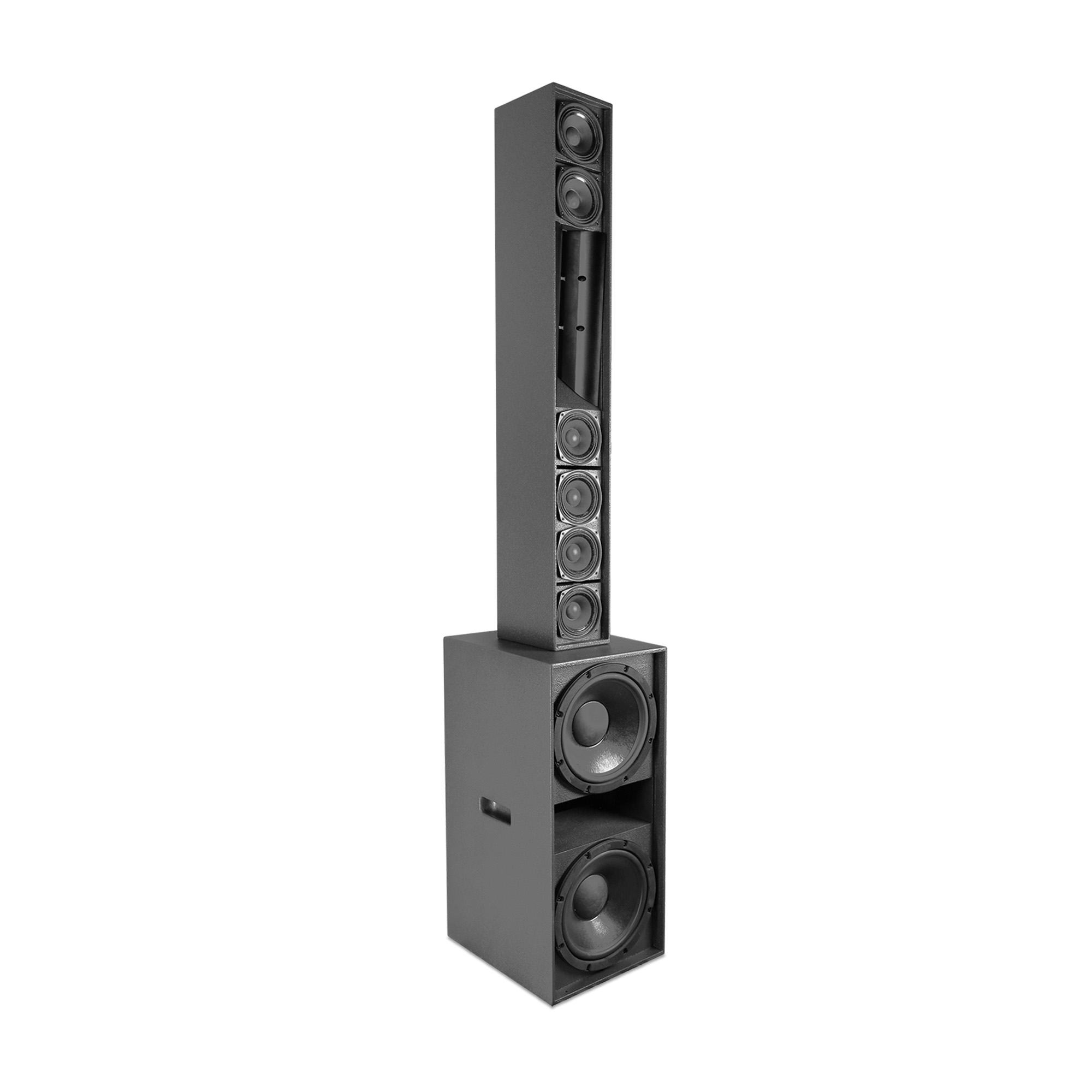

| Drivers | LF：6×5" 38mm Voice Coil Neodymium |
| HF：3×1.75" 44mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF：480W |
| HF：180W | |
| Maximum Peak SPL | 137dB/1m |
| Nominal Impedance | LF：8Ω |
| Connectors | 2 x NL4 SpeakOn |
| Pin Connectors | IN = LF:+1-1 |
| LINK = LF:+1-1 | |
| Height Front | 1300mm |
| Height Back | 1300mm |
| Width | 170mm |
| Depth | 210mm |
| Weight | 18kg / 39.7lbs |
| Rigging and Handling | |
| Threaded | 6x M6 threaded insert |
| Pole socket | 1x 35mm Pole socket |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
Angel-Bar | Suitable for Angel enclosures，install for rigging |
 |
Lighting Hook | Suitable for connecting Angel-Bar hangers |
 |
Angel-Wall frame | Suitable for Angel enclosures ，install for wall |
 |
Angel-Pole | Suitable for Angel enclosures，install for Stand 38mm hole |
 |
Angel Touring Flight Case | Accommodate 2 Angel Dimensions（W x H x D）：1345 x 391 x 487mm |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
VDA12 | 16Ω：4 x 600W RMS 8Ω：4 x 1200W RMS 4Ω/2.7Ω：4 x 2000W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%，50-60 Hz |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-5（5meter） 3、2Pin-NL4-10（10meter） 3、2Pin-NL4-15（15meter） 4、2Pin-NL4-25（25meter） |
