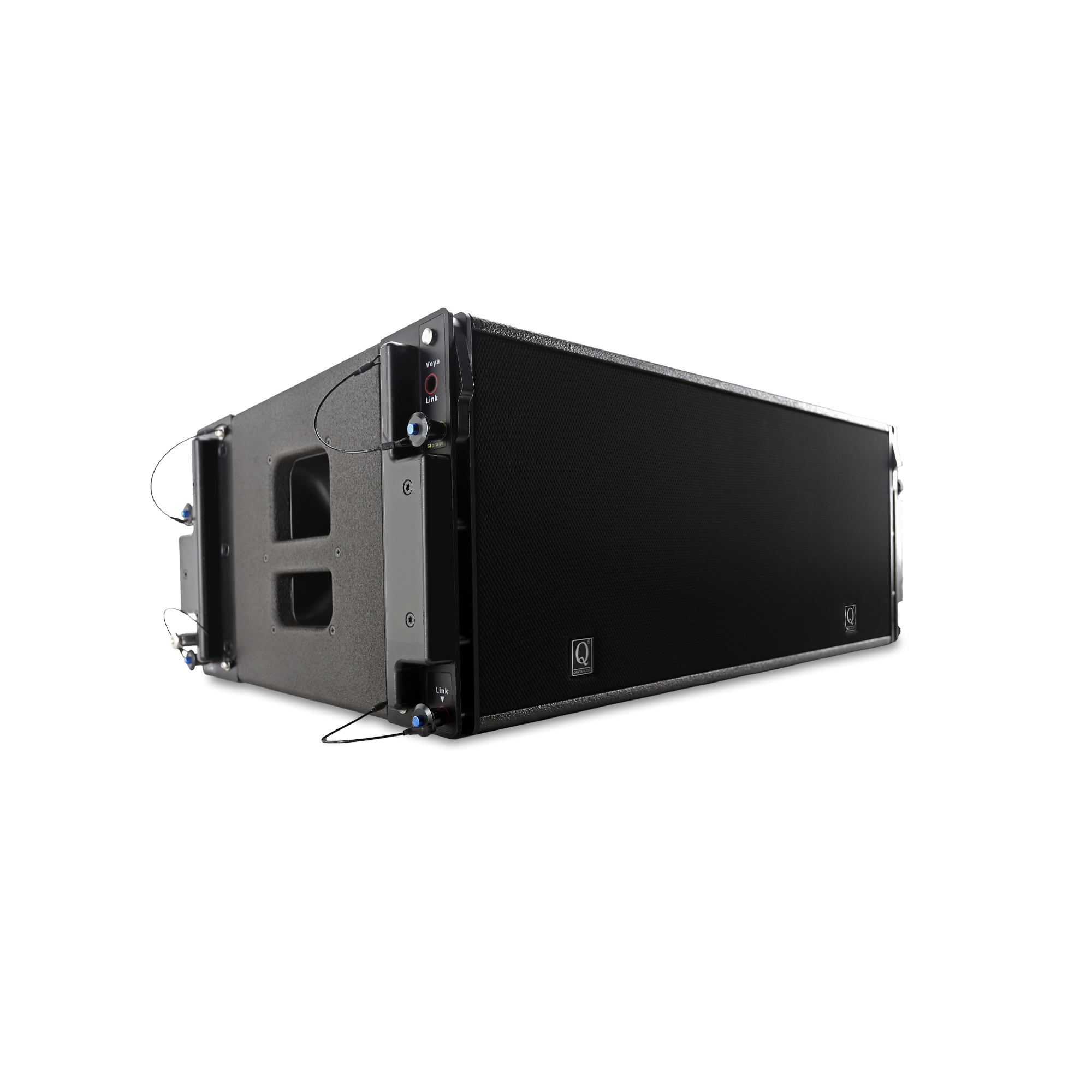

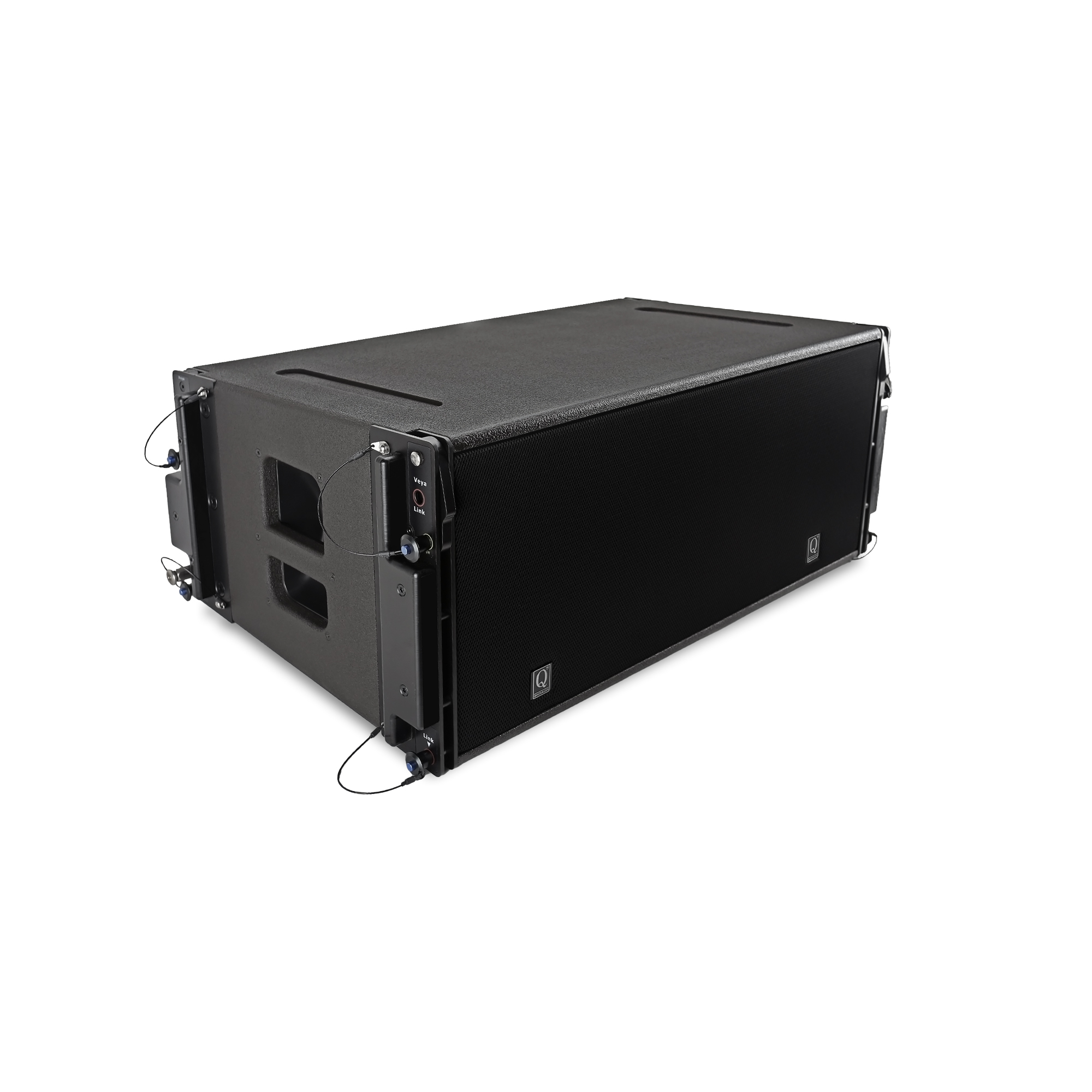

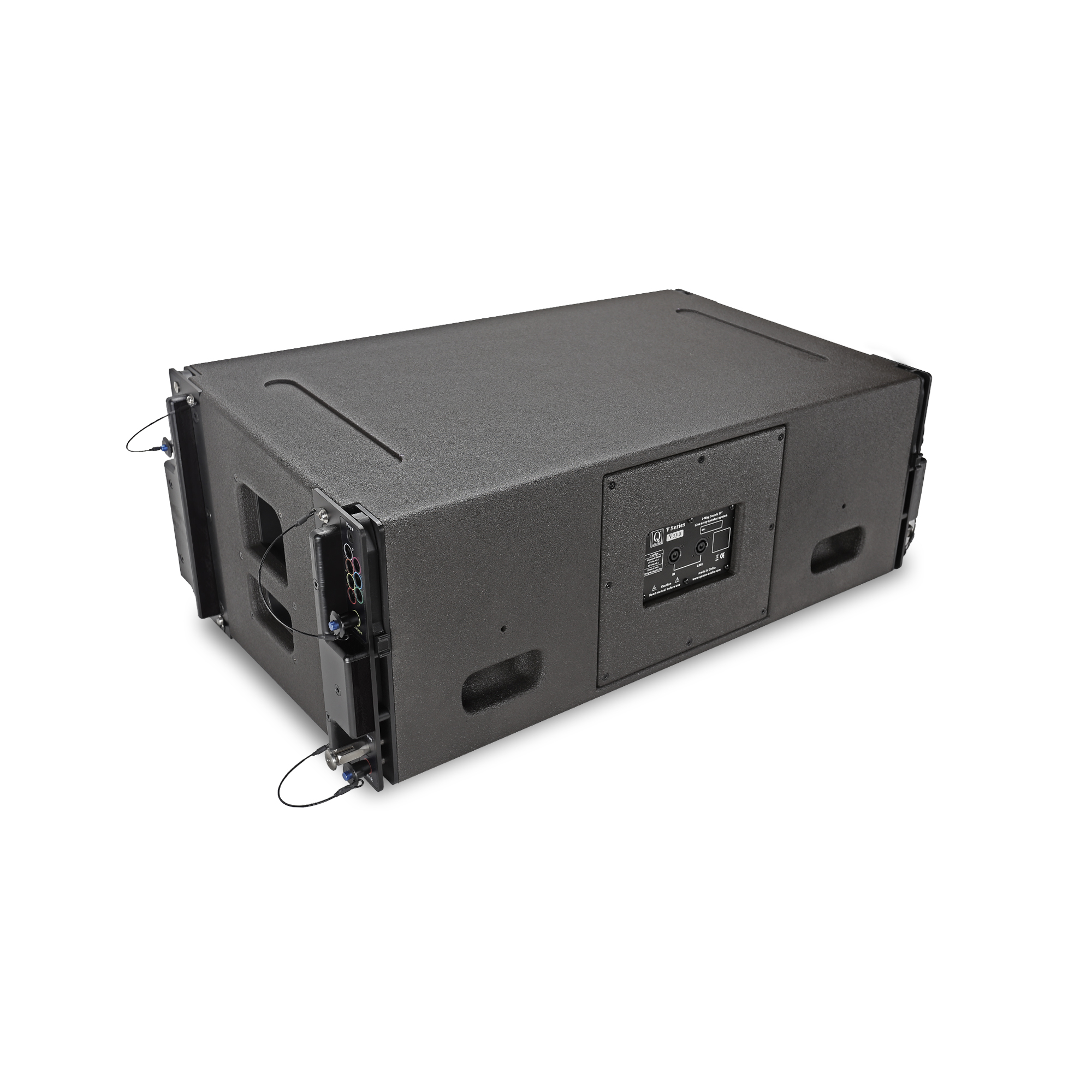

Type 2-way active line source enclosure
Frequency Response(Preset) 45Hz-20kHz
Amplifier Recommend VDA18 / VDA12 / C15
Preset [Veya] FOH / [Veya] FI
Horizontal 100°(-6dB)
Angle Increments 0° 1° 2° 3° 4° 5° 6°
Drivers LF:2×12" Neodymium
HF:2×3" Neodymium
Handling Power (AES) LF:800W
HF:220W
Maximum Peak SPL 143dB/1m
Nominal Impedance LF:8Ω / HF:8Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1 HF:+2-2
Height Front 360mm
Height Back 308mm
Width 900mm
Depth 500mm
Weight 43kg / 94.7lb
Rigging and Handling
Handle 2 ergonomic handles
Antiskid N/C
Fastener 4 side fastener
Physical Data
Material Baltic Birch Plywood
Finish Dark Grey
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP65

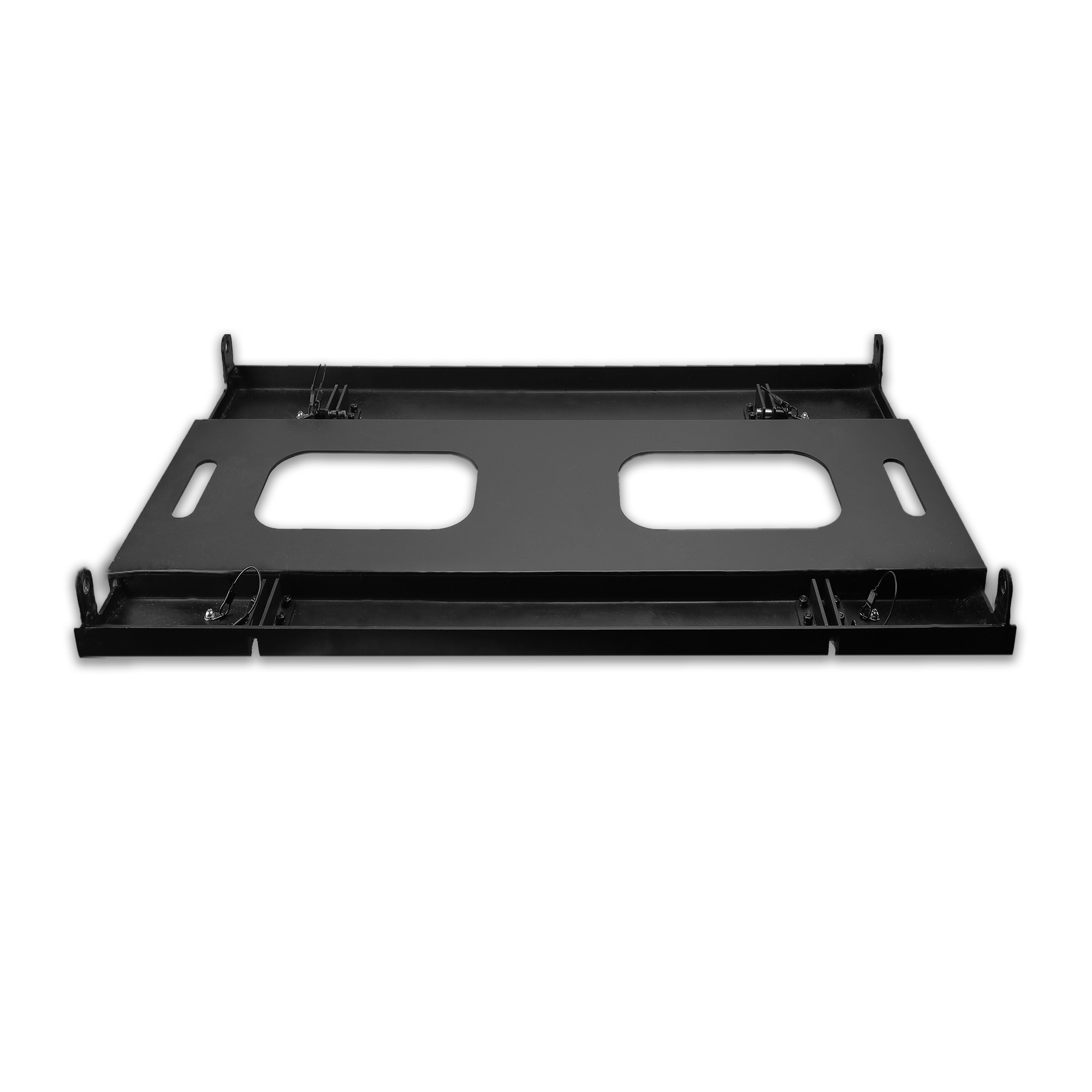

V10转换架正

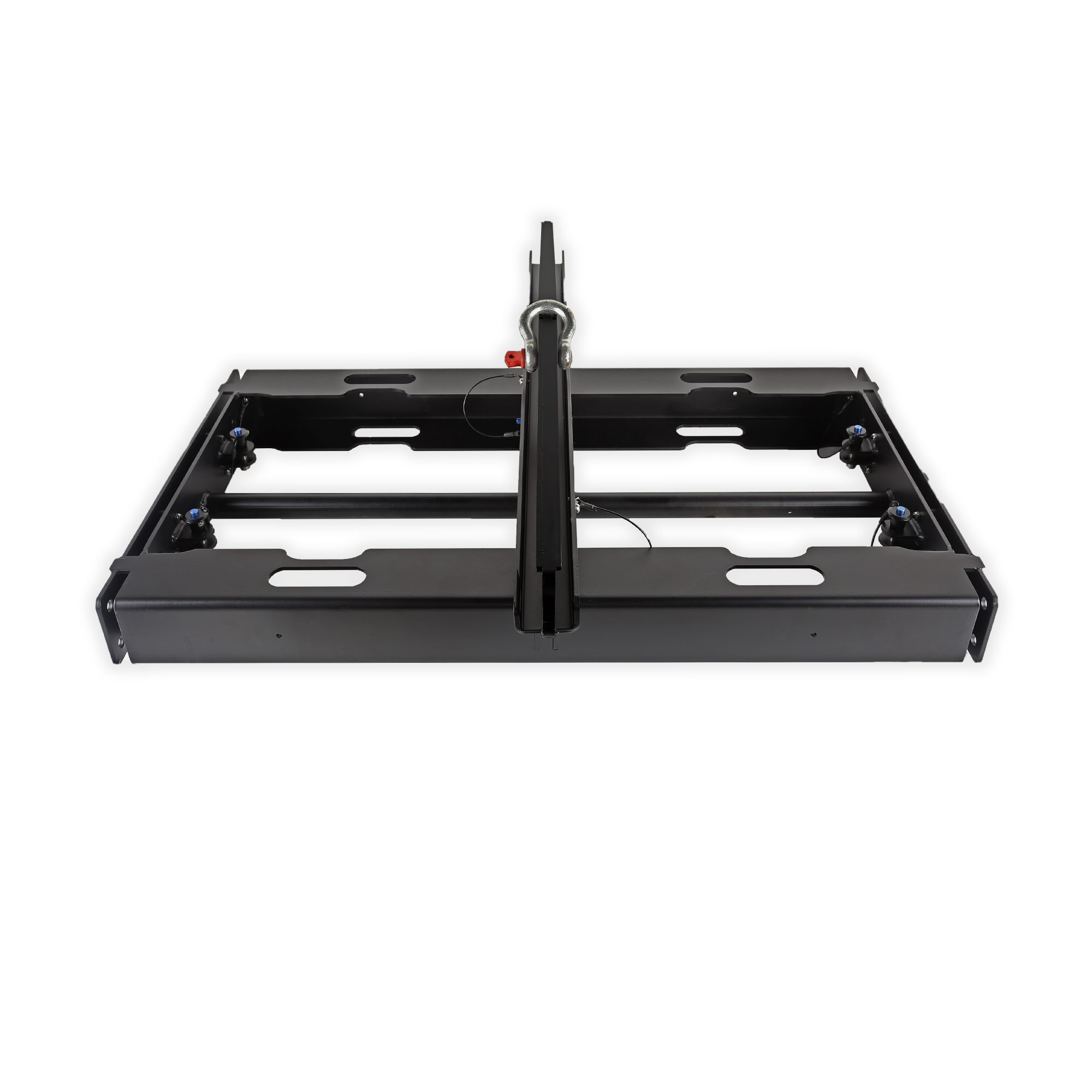

Veya顶架 侧
Veya顶架 正
Veya_SYSTEM_CAD_FILES Download
Veya Data_PI_2.0_EN Download
Veya_sps_Data_EN Download
