| Amplification class |
Class D |
| Output power CEA-2006 / 490A (1% THD, 1 kHz, all channels driven) |
4 x 1800 W RMS (8 Ω) |
|
4 x 3600 W RMS (4 Ω) |
|
4 x 4000 W RMS (2.7 Ω) |
| Digital Signal Processor (DSP) |
2 x SHARC 32-bit, oating point, 96 kHz sampling rate |
| Frequency response 20 Hz - 20 kHz |
± 0.1 dB（8 Ω 60 W output power） |
|
± 0.1 dB（4 Ω 120 W output power） |
| Distortion THD+N (20 Hz - 10 kHz) |
< 0.05%（8 Ω 60 W output power） |
|
< 0.1%（4 Ω 120 W output power） |
| Output dynamic range (20 H -20 kHz, 8Ω, A-weighted) |
> 114 dB |
| Amplification Gain |
32 dB |
| Noise level (20 Hz - 20 kHz, 8 Ω, A-weighted) |
< -72 dBV |
| Channel separation (at 1kHz , 3 x 120 W, 4 Ω) |
> 85 dB |
| Damping factor |
(1 kHz and below, 8 Ω) |
| Input delay |
0 ms to 500 ms |
| Output delay |
0 ms to 500 ms |
| Power supply |
|
| Model |
Universal Switched Mode Power Supply (SMPS) with power factor correction (PFC) |
| Power factor |
> 0.9 (except Standby on all voltages, and Idle on 230 V) |
| Mains rating |
100 V - 240 V ~ ±10%，50-60 Hz |
| Voltage start range |
70-270 V 50-60Hz |
| Nominal current requirements |
200-240 V for 32 A |
| Protection |
|
| Mains and power supply |
Over and under voltage |
|
Temperature |
|
Over current (fuse protection) |
| Power outputs |
Over current |
|
DC |
|
Short circuit |
|
Rail over and under |
|
Temperature |
| Cooling system |
fans with temperature-controlled speed |
| Interface and connections |
|
| Indicators |
For each output: 5 x LEDs for mute, load, signal, levels and limit/clip information |
| Interface |
5" TFT-Touch screen |

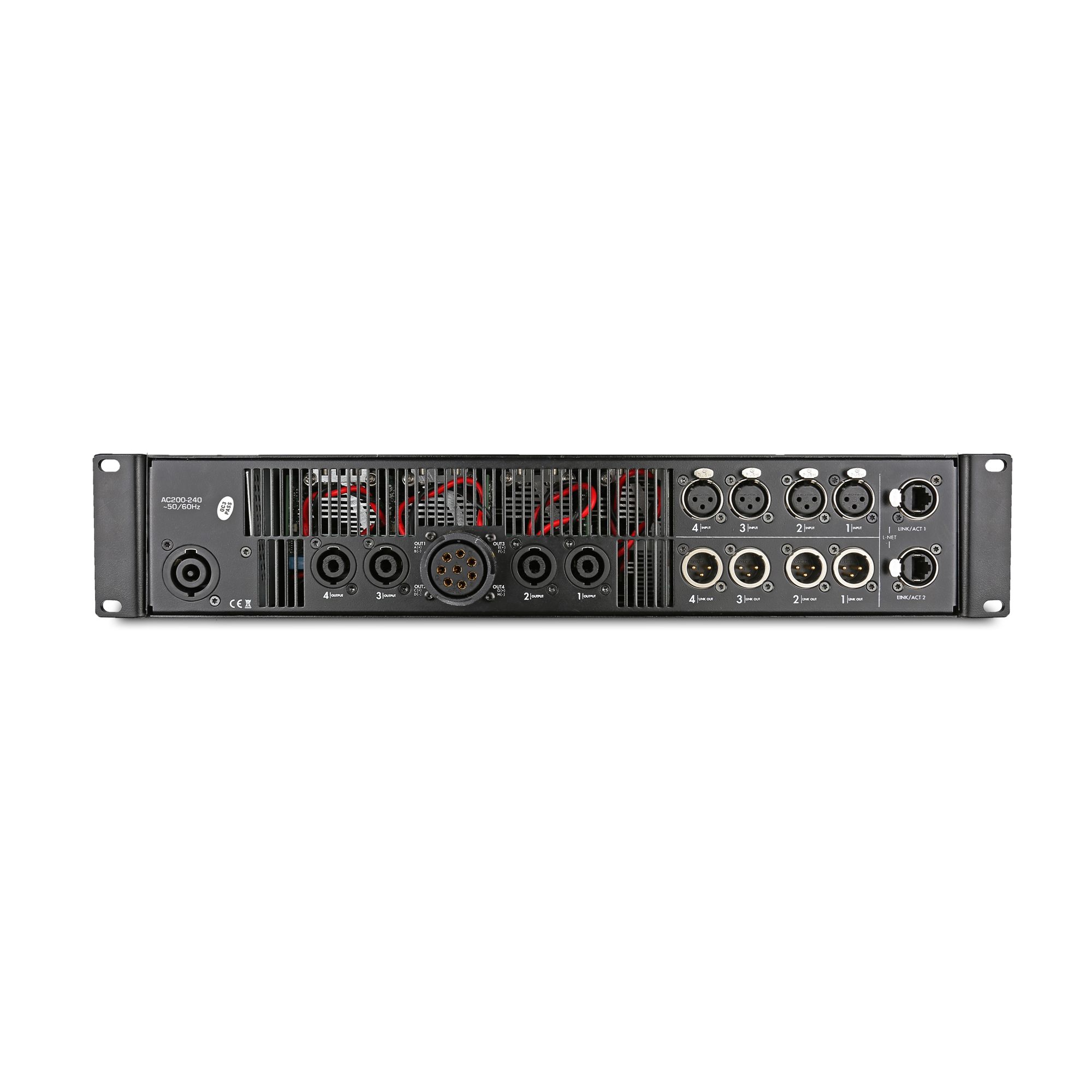

| Output connectors |
4 Neutrik® NL4 |
|
1 PA-COM® 8-Ponit |
| etherNet |
2 x 1 Gb/s RJ45 etherCON ® |
| Connectors |
|
| Input |
4 Neutrik® female XLR3 |
| Link |
4 Neutrik® male XLR3 |
| Available input connectors vs. input mode |
|
| Analog AB / Analog CD |
IN A, IN B / IN C, IN D (4 connectors, 4 channels) |
| Digital AB / Digital CD |
IN A&B / IN C&D (2 connectors, 4 channels) |
| Link connectors |
|
| Analog input mode |
Passively connected |
| Digital input mode |
Electronically buffered, fail safe relay |
| Analog input mode |
|
| Input impedance |
22 kΩ (balanced) |
| Maximum input level |
21 dBu (balanced, THD 1%) |
| A/D conversion |
32-bit analog/digital converters (120 dB dynamic range) |
| Digital input mode / Supported operating mode |
|
| Standards |
AES/EBU (AES3) |
| Sampling frequency (Fs) |
44.1, 48, 88.2, 96, 176.4 or 192kHz |
| Word length |
16, 18, 20 or 24 bits |
| Synchronization |
Signal resampled to internal clock at 96kHz |
| Input gain |
|
| Range |
-80 dB to +15 dB |
| Steps |
0.1 dB |
| Remote control and monitoring |
|
| Network connection |
Dual-port Ethernet Gigabit interface |
| QANON AUDIO Remote control software |
VDA Control |
| Physical data |
|
| Dimensions（W x H x D） |
483 x 88 x 465 mm |
| Finish |
Black |
| Protection rating |
IP2x |
| Weight |
17kg / 37.5Ib |
