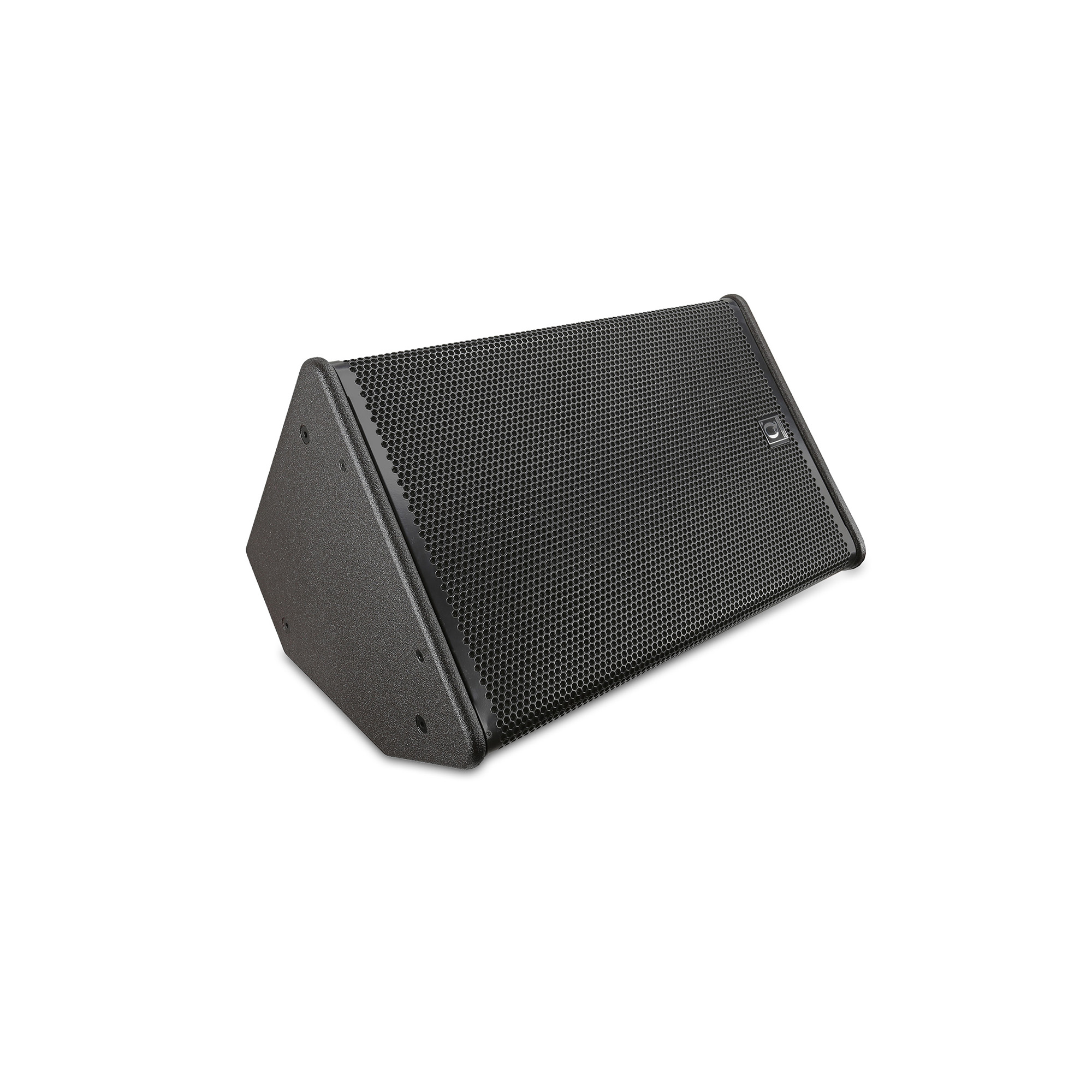

| Type | Passive 2-way Full range Enclosure |
| Mirror symmetry | Left/Right |
| Frequency Response(Preset) | 60Hz-18kHz(±3dB) |
| Horizontal | 100° |
| Vertical | 50° |
| Monitor Angle | 45°(1) |
| 15°(2) | |
| Drivers | LF：1×10"（Ferrite） |
| HF：1×1.75"（Ferrite） | |
| Handling Power (AES) | LF：250W |
| HF：60W | |
| Maximum Peak SPL | 128dB/1m |
| Nominal Impedance | LF:8Ω / HF:8Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Width | 300mm |
| Height | 490mm |
| Depth | 275mm |
| Weight | 15kg/33Ib |
| Rigging and Handling | |
| Handle | 2 handles |
| Threaded | 13x M8 threaded insert |
| Pole socket | 1x 35mm Pole socket |
| Stand bar | 4x 10mm*38mm(H*⌀) |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP65 |
