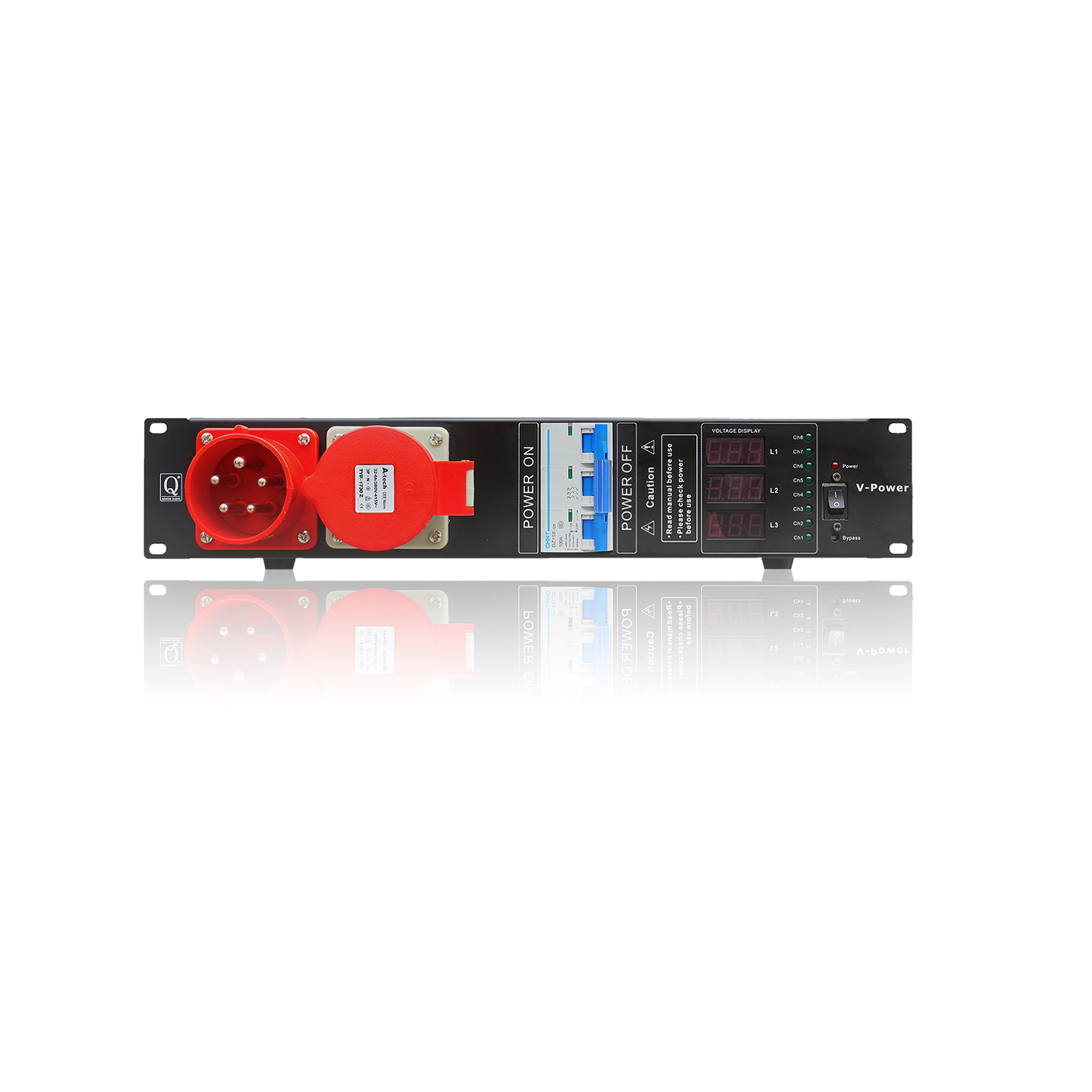

| Front connectors | |
| Main power Input | 32A 5pin (3P+N+G) |
| Main power Output | 32A 5pin (3P+N+G) |
| LED lamp display | LED:L1,L2,L3 |
| AC Voltage Panel display | L1,L2,L3 Display |
| Power channel | 8-channel power supply sequence |
| Power switch | 100A |
| Forced start | PASS |
| Switch | ON/OFF |

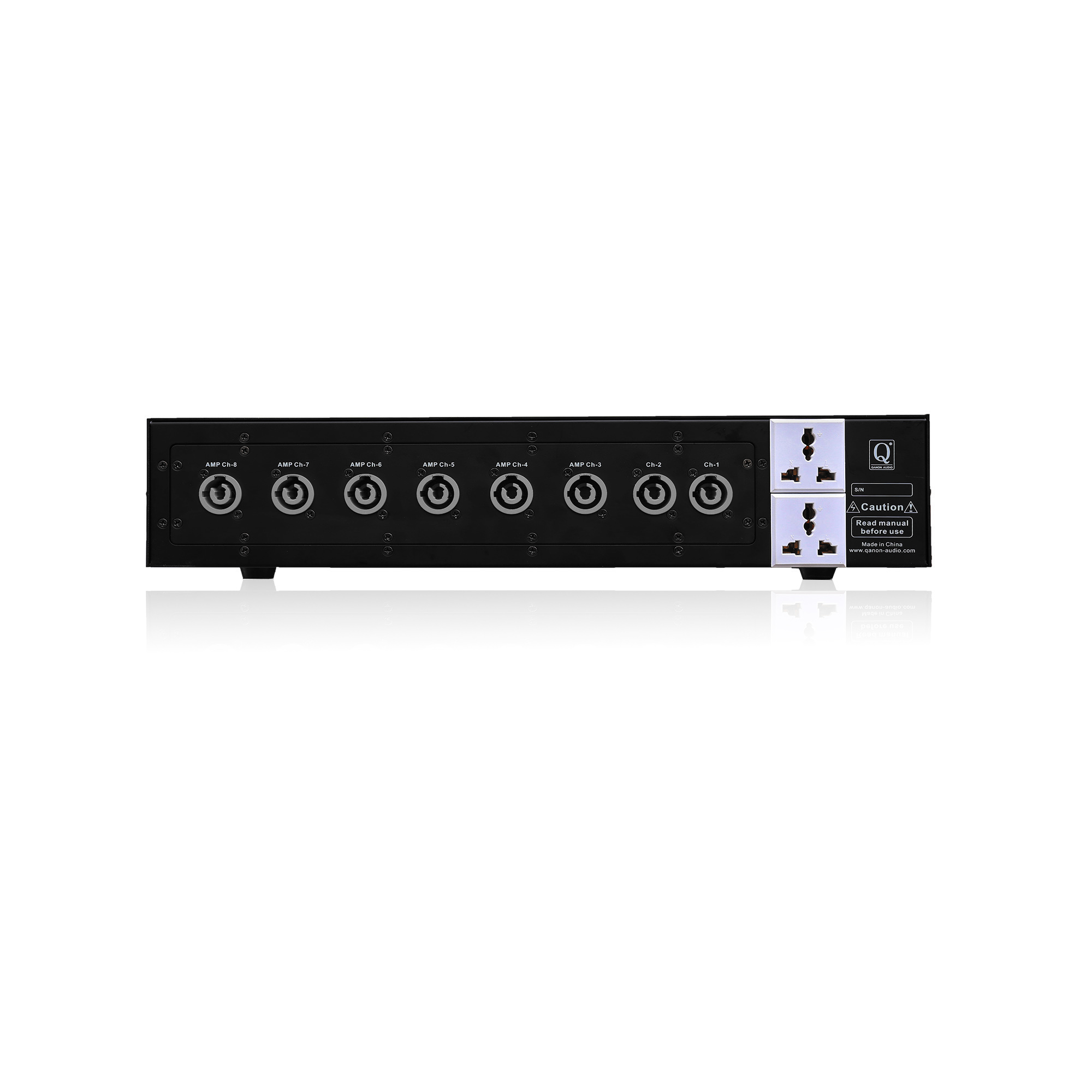

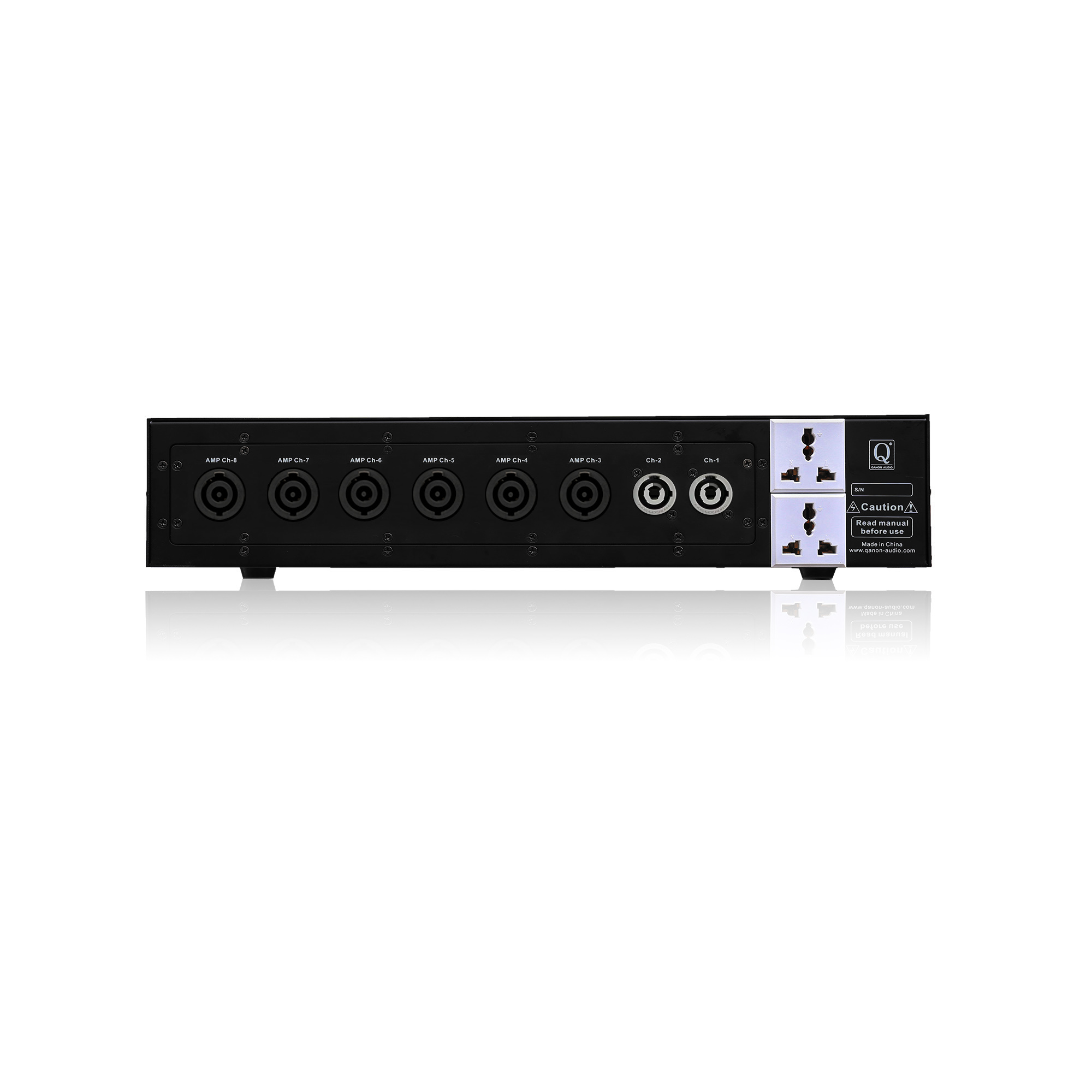

| Rear connectors | |
| Power Output | 6 x 20A Output / 6 x 32AOutput(Replaceable) |
| 3-4ch(L1) 5-6ch(L2) 7-8ch(L3) | |
| Auxiliary power supply | 2 x 20A |
| Auxiliary power supply | 2 x power outlets |
| Physical data | |
| Dimensions（W x H x D） | 483 x 88 x 250 mm |
| Material | Metal |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 7.5kg / 16.5lb |
