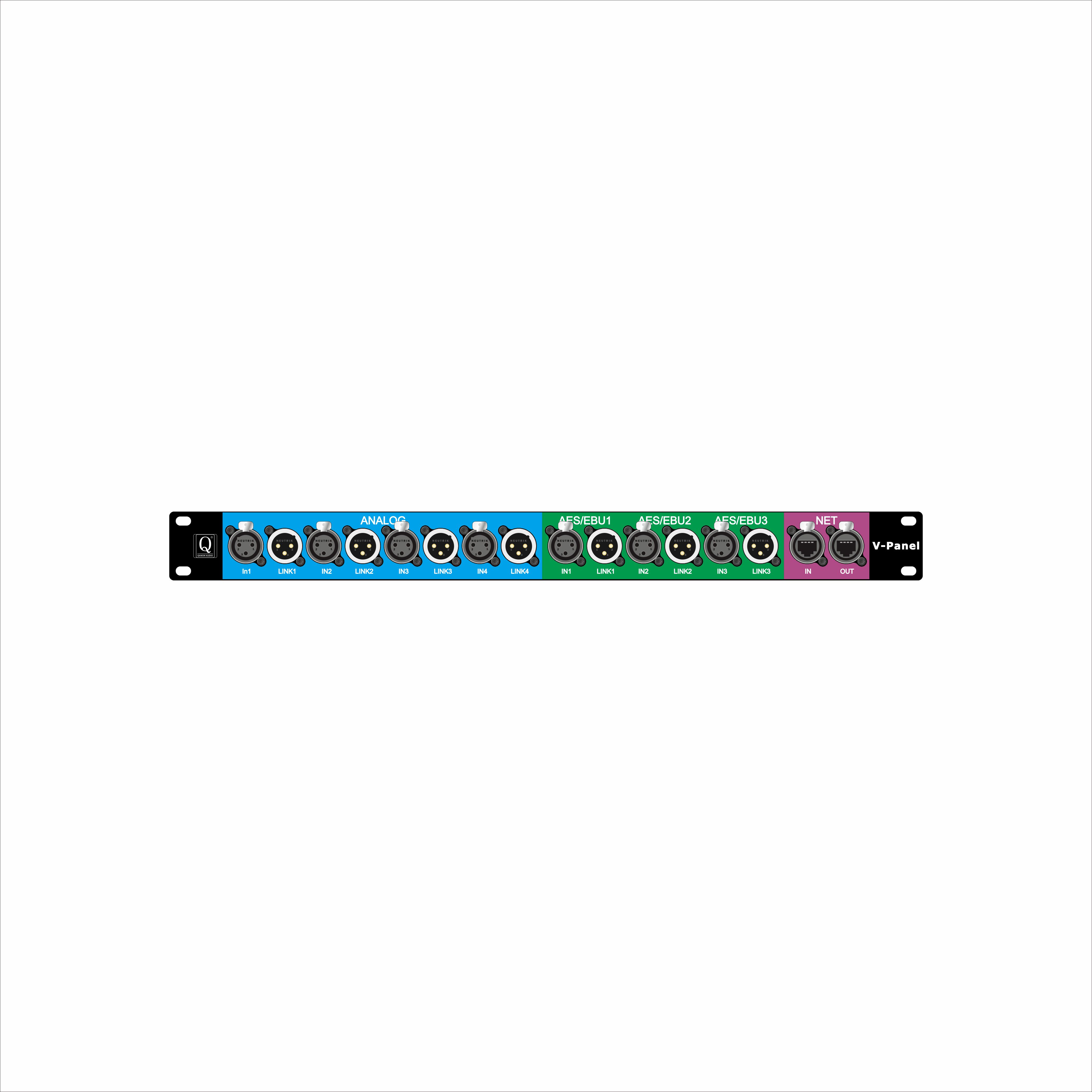

| Front connectors | |
| Analog Input/Link | 4 x female Neutrik® XLR3 (IN) |
| 4 x male Neutrik® XLR3 (LINK) | |
| AES/EBU Input/Link | 3 x female Neutrik® XLR3 (IN) |
| 3 x male Neutrik® XLR3 (LINK) | |
| Network | 2 x etherCON® (IN/OUT) |

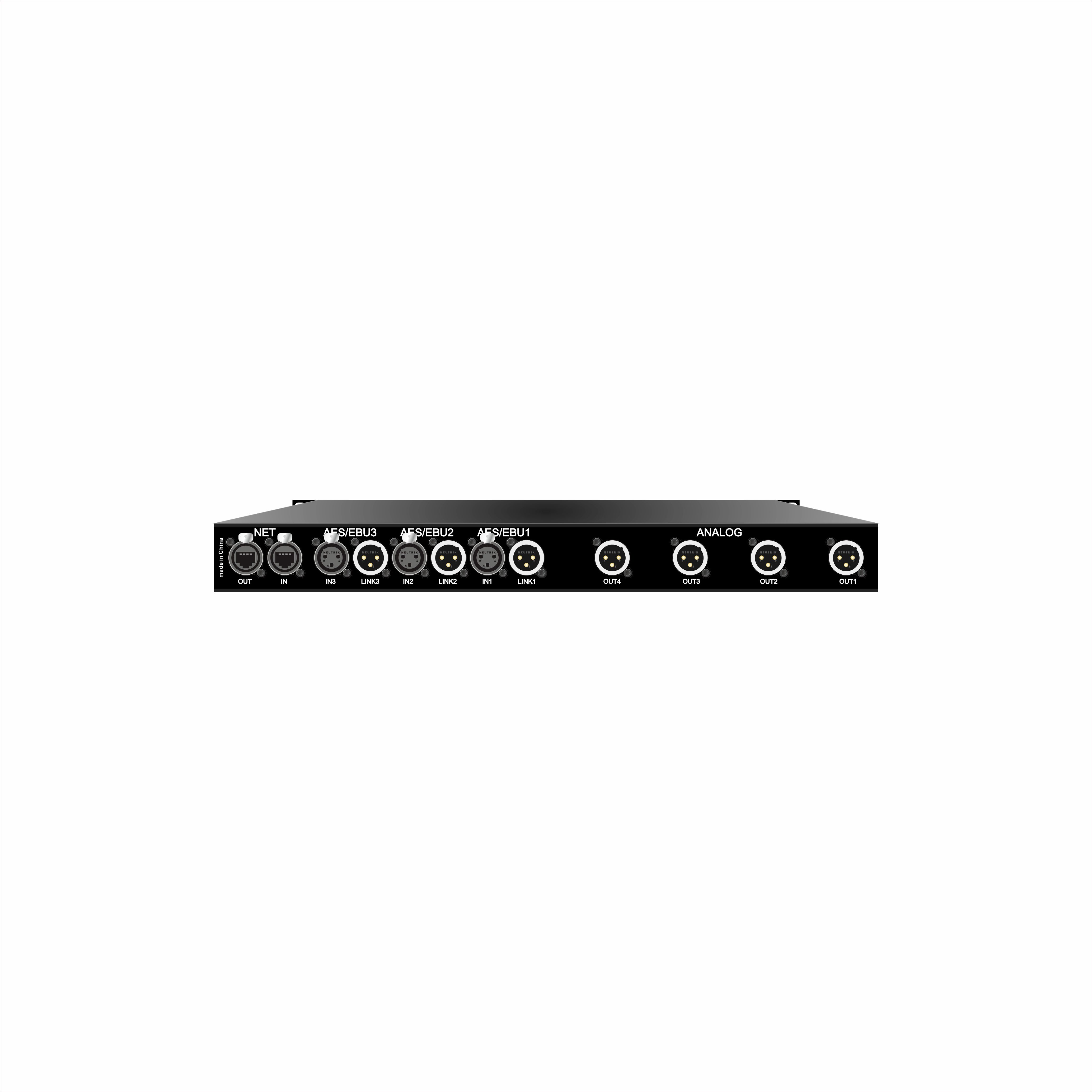

| Rear connectors | |
| Analog Output | 4 x female Neutrik® XLR3 (Out) |
| AES/EBU Input/Link | 3 x female Neutrik® XLR3 (IN) |
| 3 x male Neutrik® XLR3 (LINK) | |
| Network | 2 x etherCON® (IN/OUT) |
| Physical data | |
| Dimensions（W x H x D） | 483 x 44 x 123 mm |
| Material | Metal |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 2kg / 4.4lb |
