| Main Power Input | AC~220V 32A 3-Pin(L+N+G) |
| Analog Input | 4 x female Neutrik® XLR3 (IN) |
| SpeakOn NL4 Output | 3 x Neutrik® NL8 / 4 x Neutrik® NL4 |
| AC Voltage Panel display | 1 channel Display |
| Power Channel | 8-channel power supply sequence |
| Power Switch | 100A |
| Forced start | Pass |
| Switch | ON/OFF |

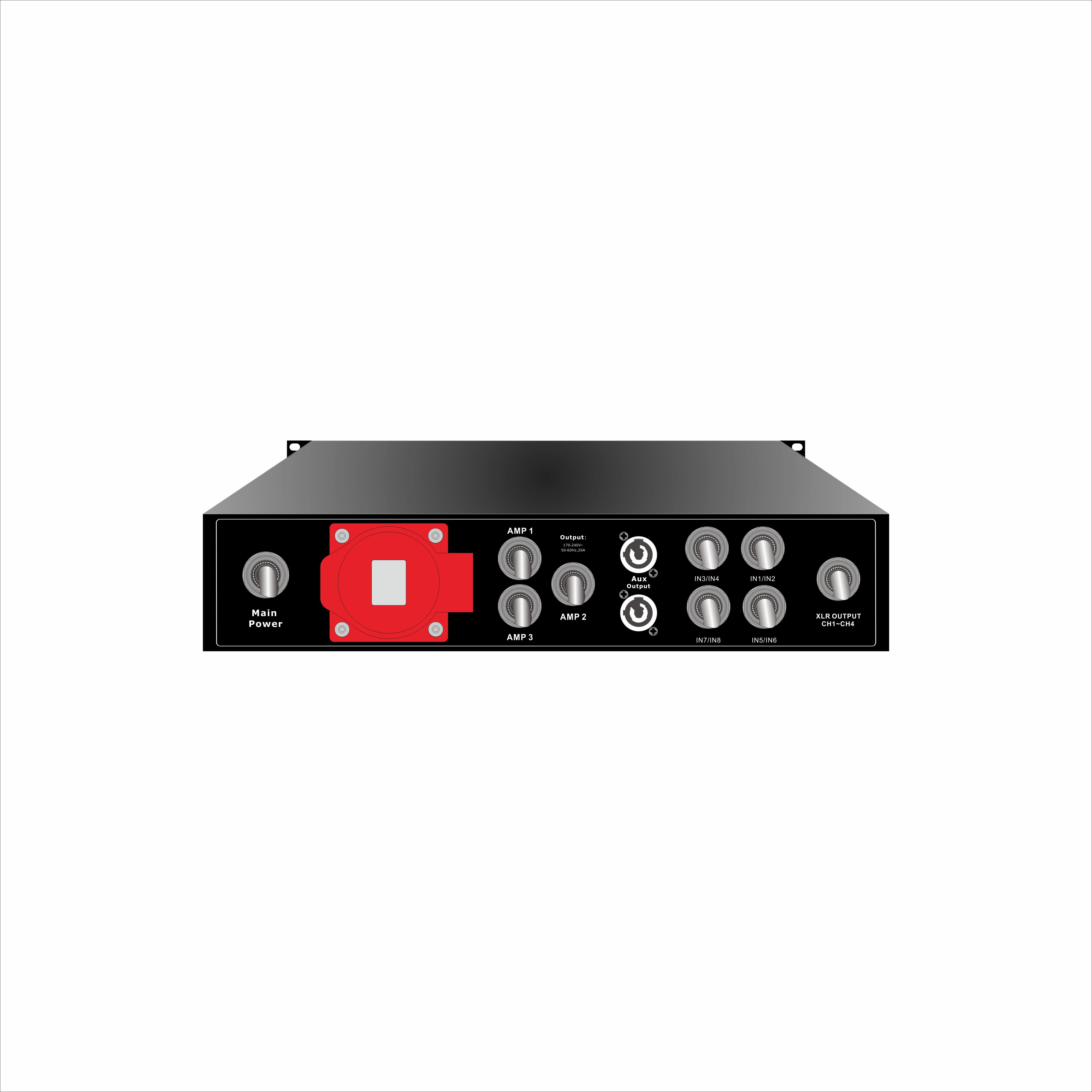

| Rear connectors | |
| Main power Output | AC~220V 32A 3-Pin(L+N+G) |
| Analog Output | 4 x male Neutrik® XLR3(OUT) |
| SpeakOn NL4 Intput | 3 x Neutrik® NL8 / 4 x Neutrik® NL4 |
| power supply | 6 x 20A |
| Auxiliary power supply | 2 x power outlets |
| Physical data | |
| Dimensions（W x H x D） | 483 x 88 x 460 mm |
| Material | Metal |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 11kg / 24.2lb |
