C15 |
4 Channel ClassD Switch Power 4Input Output stereo mode 8Ω 1500W*4ch Output stereo mode 4Ω 2400W*4ch Output stereo mode 2.7Ω 3000W*4ch Main Power Supply：70V～270V，50Hz/60Hz，20APowerCon Dimensions（W*H*D）：483mm*44mm*420mm Weight :8.5kg/18.7lbs |
 |
DF36 |
DSP Digital Processor 3 Input 6 Output FIR Frequency Response 20Hz-20kHz,-0.3dB Dynamic Range >115dBu Maximum Input Level +18dBu Maximum output level +20dBu 32 bit DSP，96kHz sampling rate Power supply AC 95V-250V 50/60Hz Weight：2.6kg/5.7lbs |
 |
DF48 |
DSP Digital Processor 4 Input 8 Output FIR Frequency Response 20Hz-20kHz,-0.3dB Dynamic Range >115dBu Maximum Input Level +18dBu Maximum output level +20dBu 32 bit DSP，96kHz sampling rate Power supply AC 95V-250V 50/60Hz Weight：2.6kg/5.7lbs |
 |
DS3 |
AC~380V 32A 5-Pin (3P+N+G) 4 x Female XLR3（IN） 4 x Male XLR3（LINK） 8 x NL4 SpeakOn® Power Switch：L1/L2/L3/Aux Display：Voltage / Current Dimensions（W x H x D） ：483 x 88 x 300 mm Weight：7kg / 15.4lbs |
 |
DS1 |
AC~220V 32A 3-Pin(L+N+G) 4 x Female XLR3（IN） 4 x Male XLR3（LINK） 8 x NL4 SpeakOn® Power Switch：Ch1/Ch2/Ch3/Aux Display：Voltage / Current Dimensions（W x H x D） ：483 x 88 x 300 mm Weight：7kg / 15.4lbs |
 |
1U/2U Panel |
Fill in unoccupied space |
 |

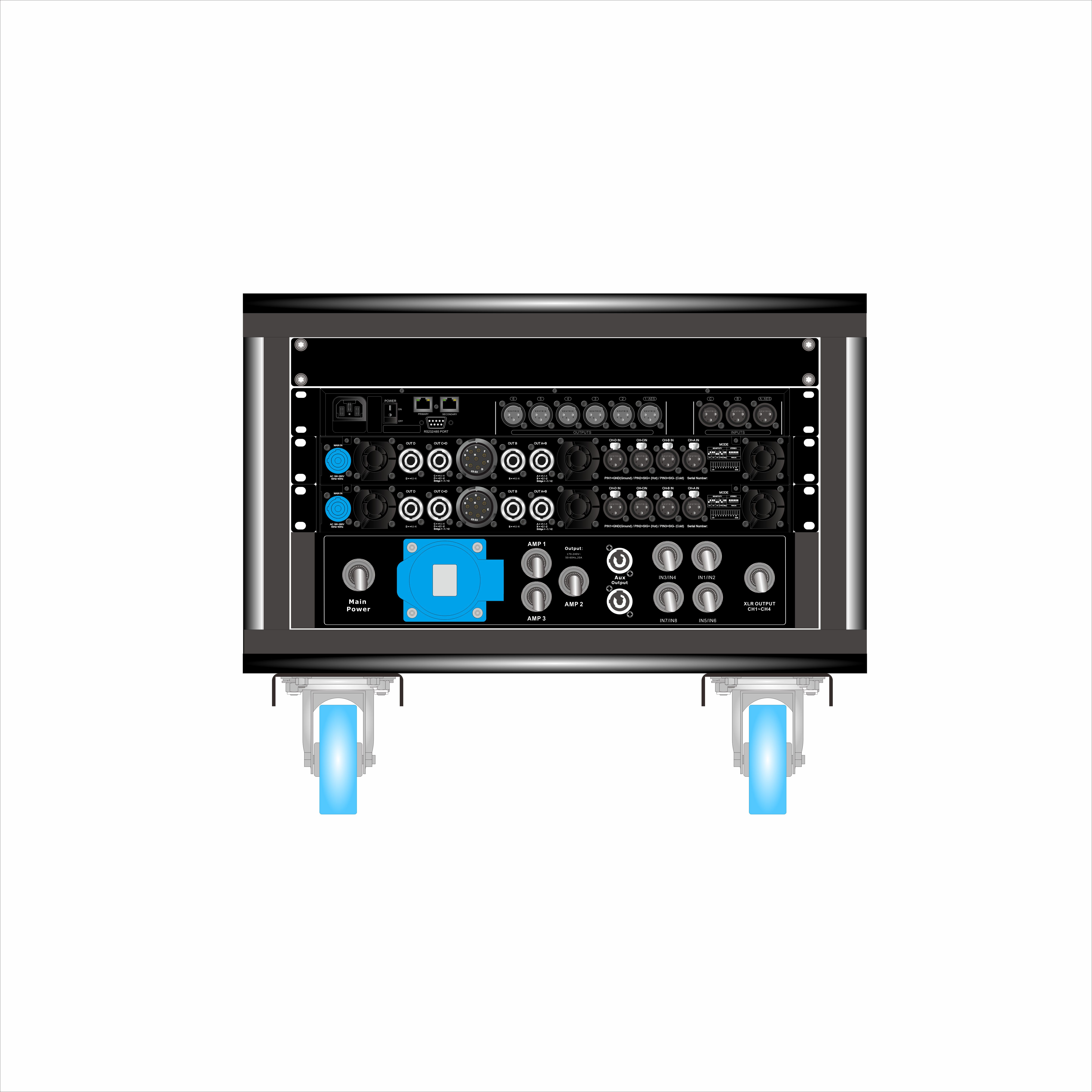

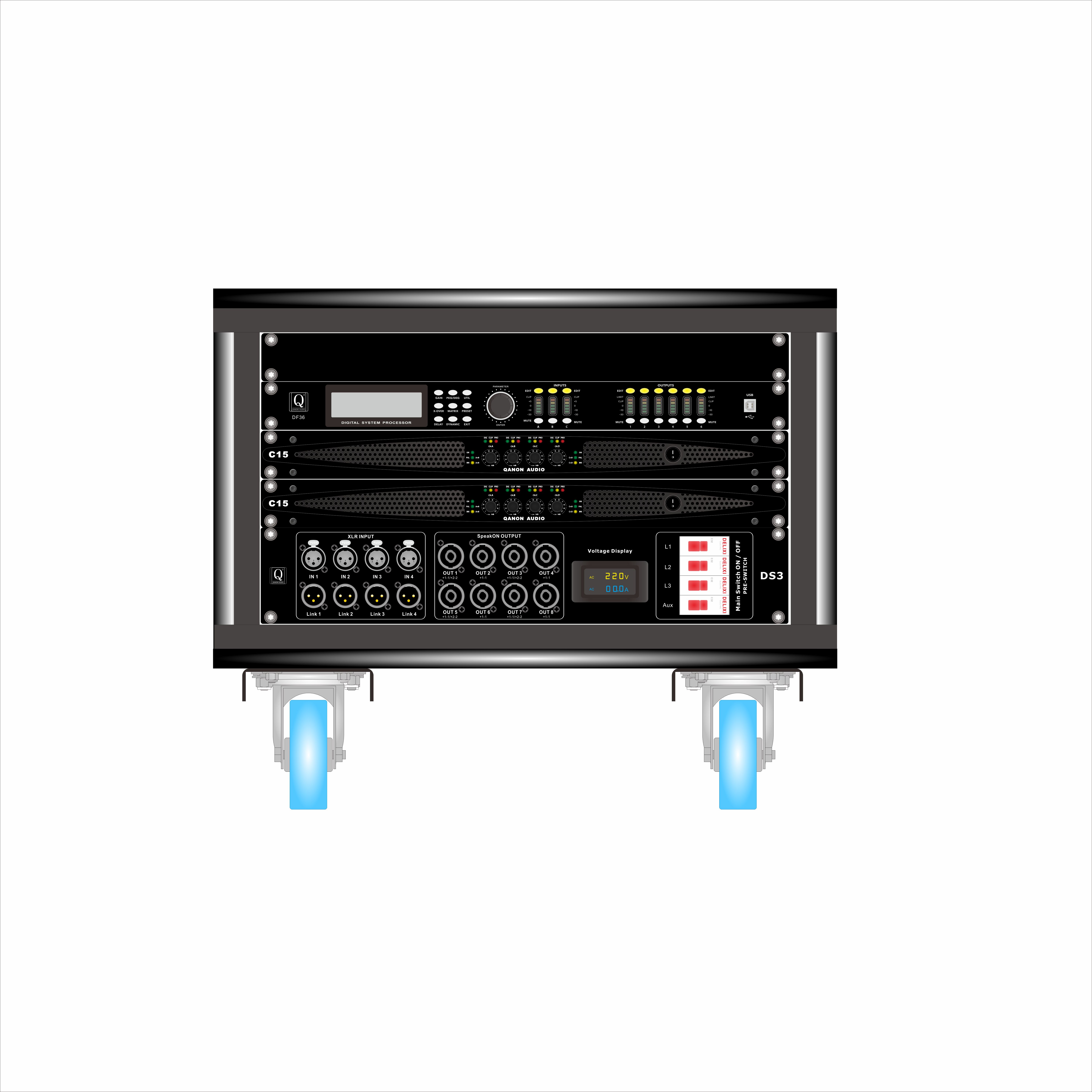

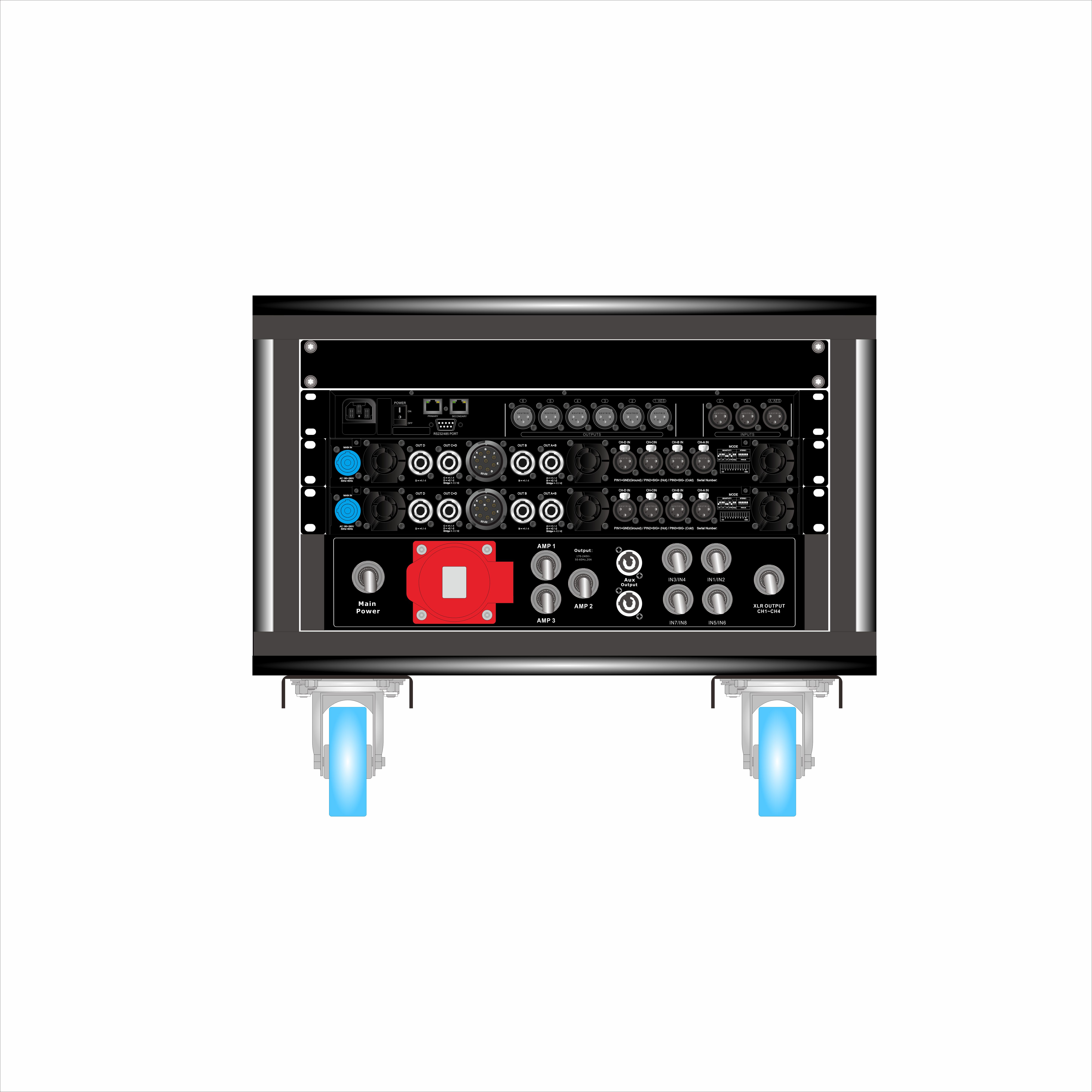

6U-Rack |
The 6U rack is a dual structure made of wood, supported internally by a wooden frame and shock-absorbing cotton. This ensures transportation and maximum protection for electronic devices inside the rack, with two openable front and rear doors. |
 |
Analog XLR Signal Cables |
3 x 1meter Analog XLR Cables 6 x 0.5meter Analog XLR Cables |
 |
32A 5P Power Plug |
Male / Female |
 |
32A 3P Power Plug |
Male / Female |
