VDA14-Rack

VDA14

5" TFT-Touch screen 4in 4out DSP 24bit 96k Sample rate Output stereo mode 8Ω 1400W*4ch Output stereo mode 4Ω 2400W*4ch Output stereo mode 2.7Ω 2000W*4ch Main Power Supply:90V～270V，50Hz/60Hz，20APowerCon Dimensions（W*H*D）：483mm*88mm*440mm Weight :14.5 kg/32lbs

V-Panel

4 x Analog IN XLR3 female 4 x Analog LINK XLR3 male 3 x AES/EBU IN XLR3 female 3 x AES/EBU LINK XLR3 male 2 x RJ45 etherCON

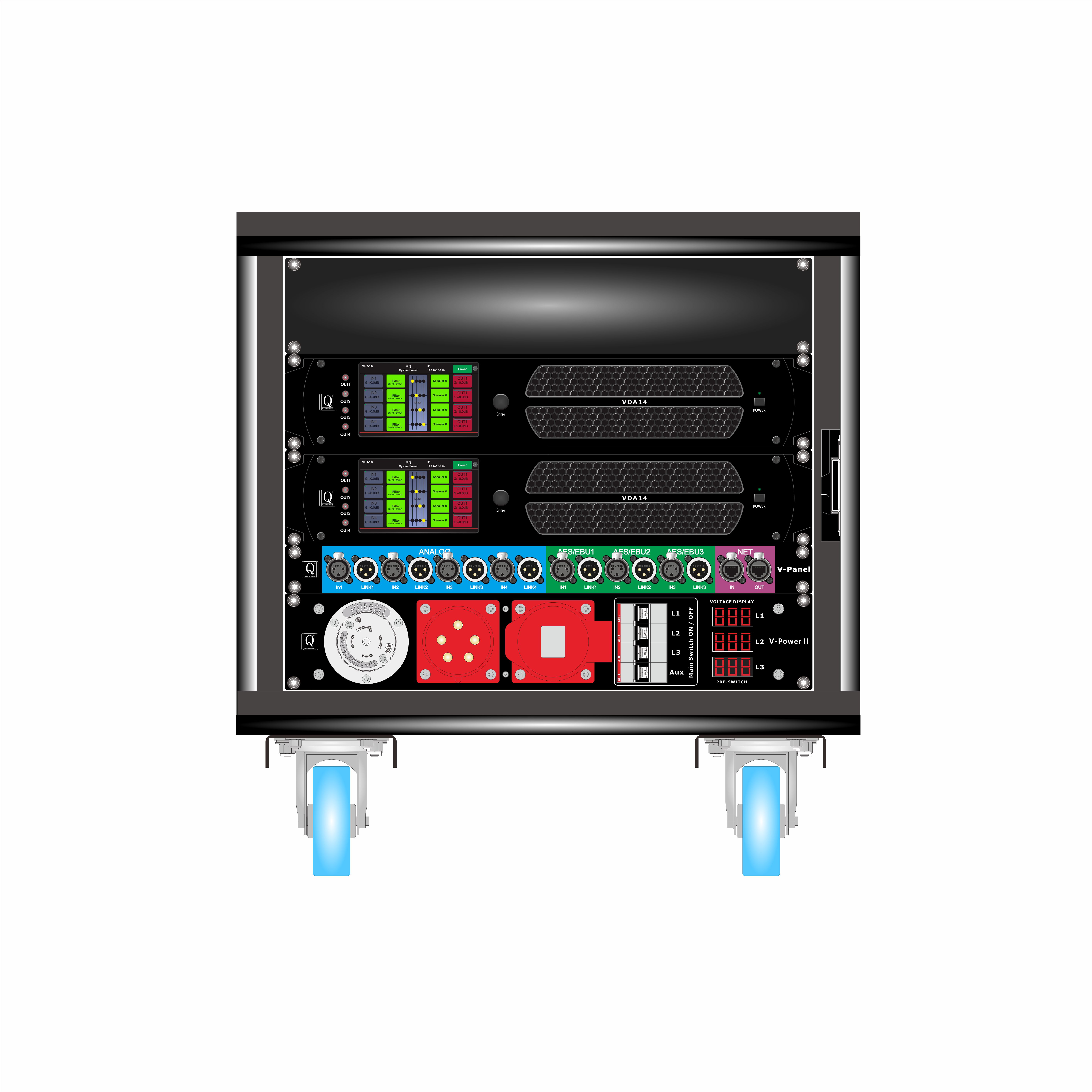

V-PowerII

2U / 19 "I / O power supply, compatible with VDA-Rack / C15 -Rack power supply, automatically balance the number of VDA18 per phase. It has three-phase NEMA l21-30p input (US mode) and 400V power supply (EU mode) with 32A socket. Either US mode or EU mode, the power switch is allowed to operate. Two universal sockets and PowerCon 20A sockets can also be used for auxiliary power supply. Each switch is matched with a circuit breaker, and three LED displays help to monitor the presence of each phase in the front end of the power circuit.

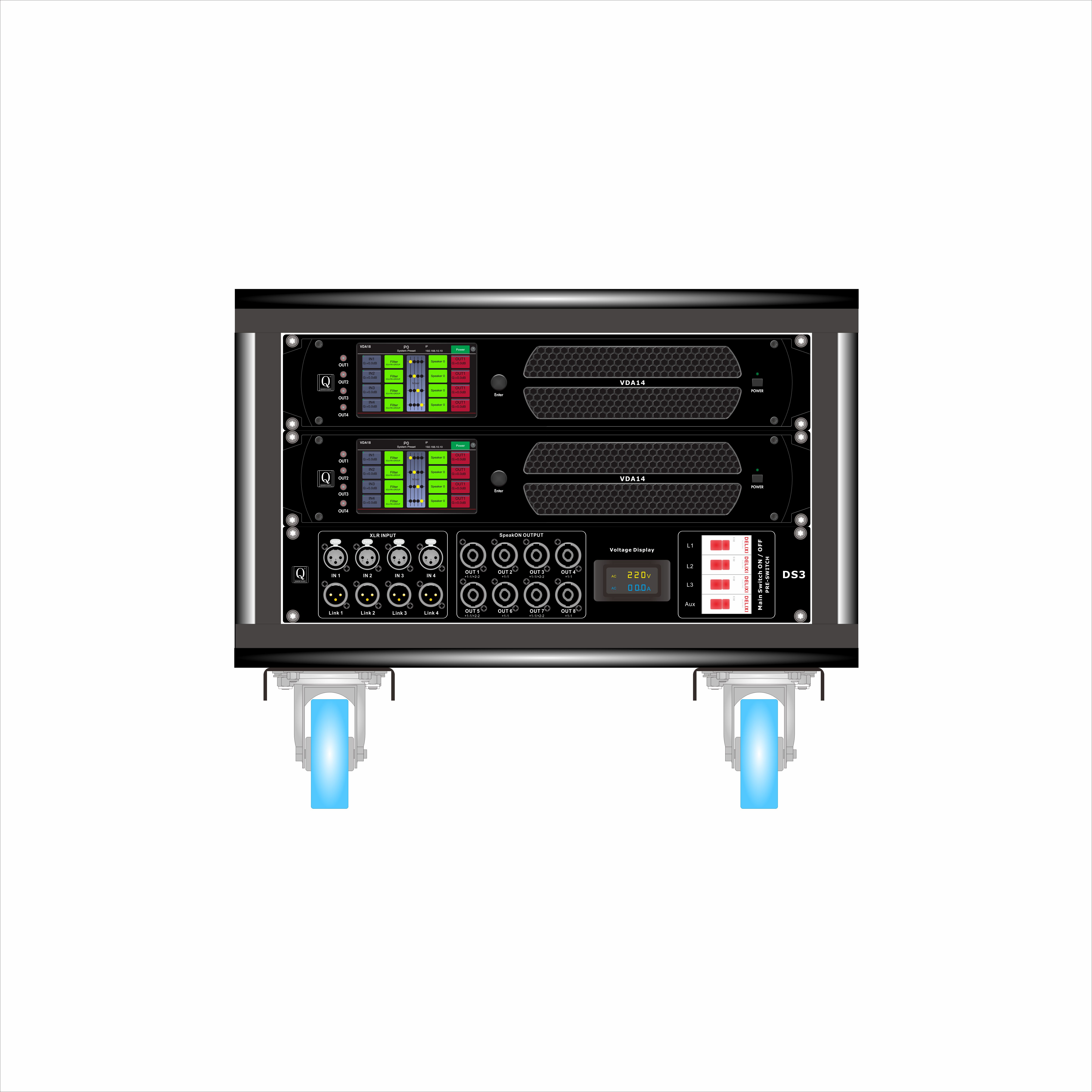

DS3

AC~380V 32A 5-Pin (3P+N+G) 4 x Female XLR3（IN） 4 x Male XLR3（LINK） 8 x NL4 SpeakOn® Power Switch：L1/L2/L3/Aux Display：Voltage / Current Dimensions（W x H x D）：483 x 88 x 300 mm Weight：7kg / 15.4lbs

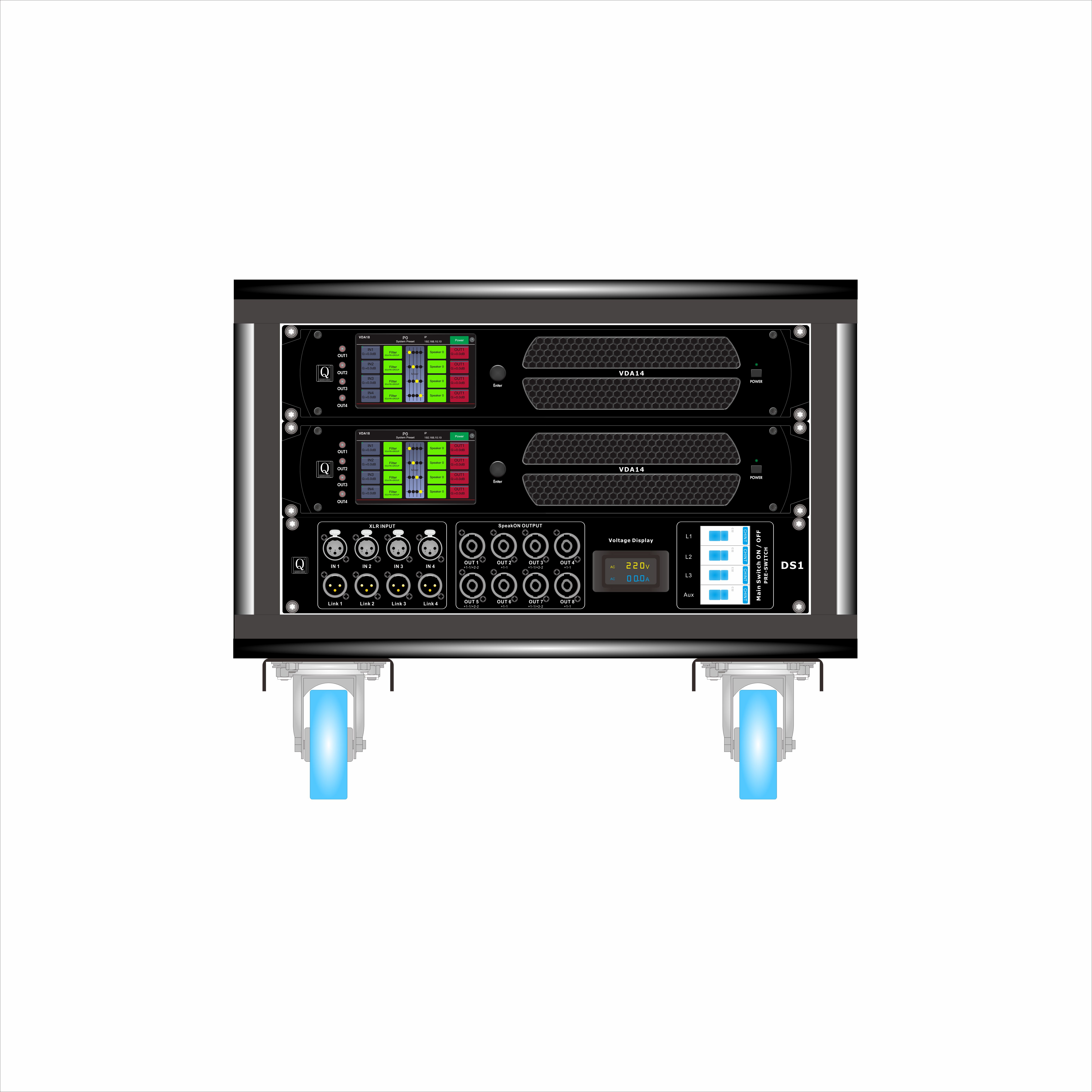

DS1

AC~220V 32A 3-Pin(L+N+G) 4 x Female XLR3（IN） 4 x Male XLR3（LINK） 8 x NL4 SpeakOn® Power Switch：Ch1/Ch2/Ch3/Aux Display：Voltage / Current Dimensions（W x H x D）：483 x 88 x 300 mm Weight：7kg / 15.4lbs

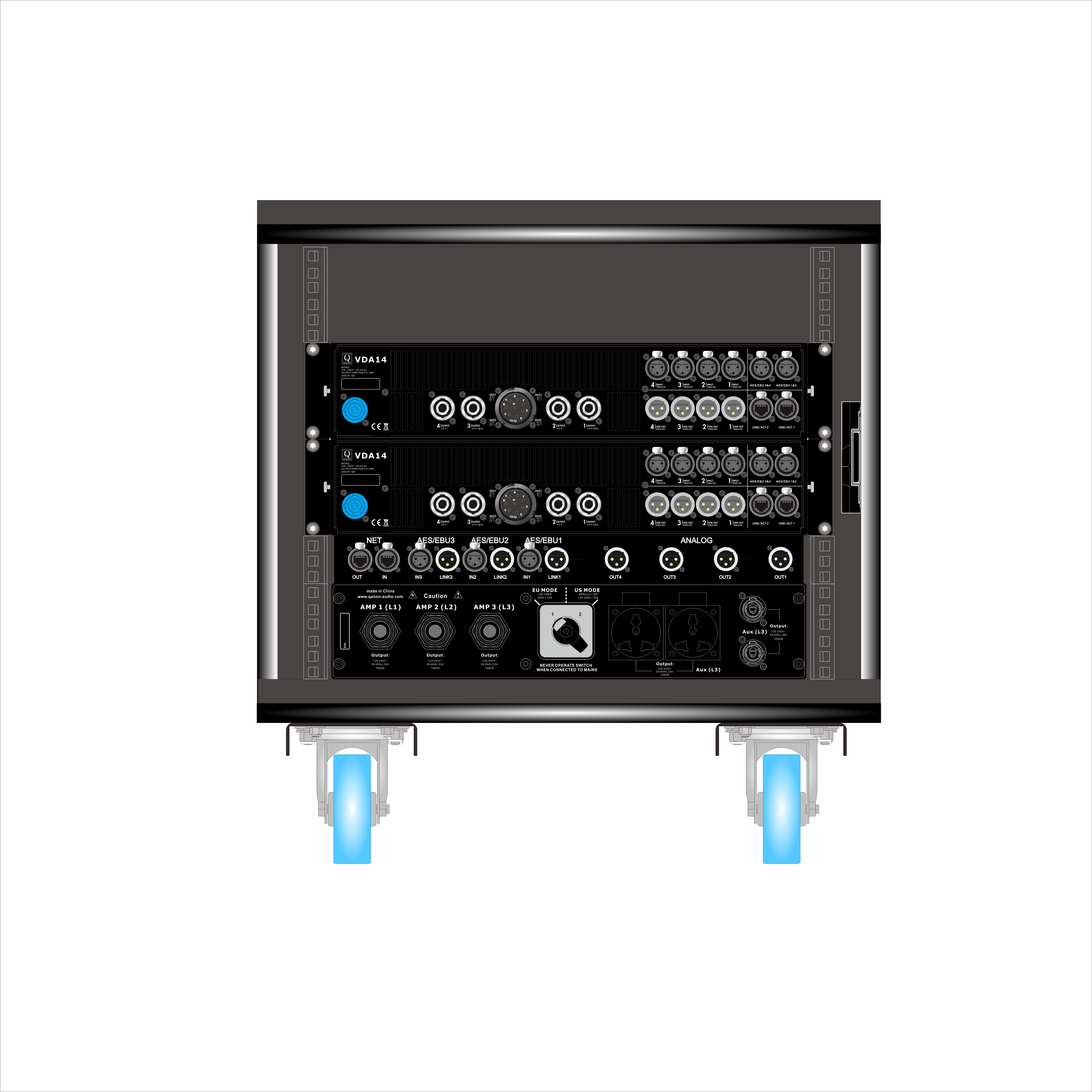

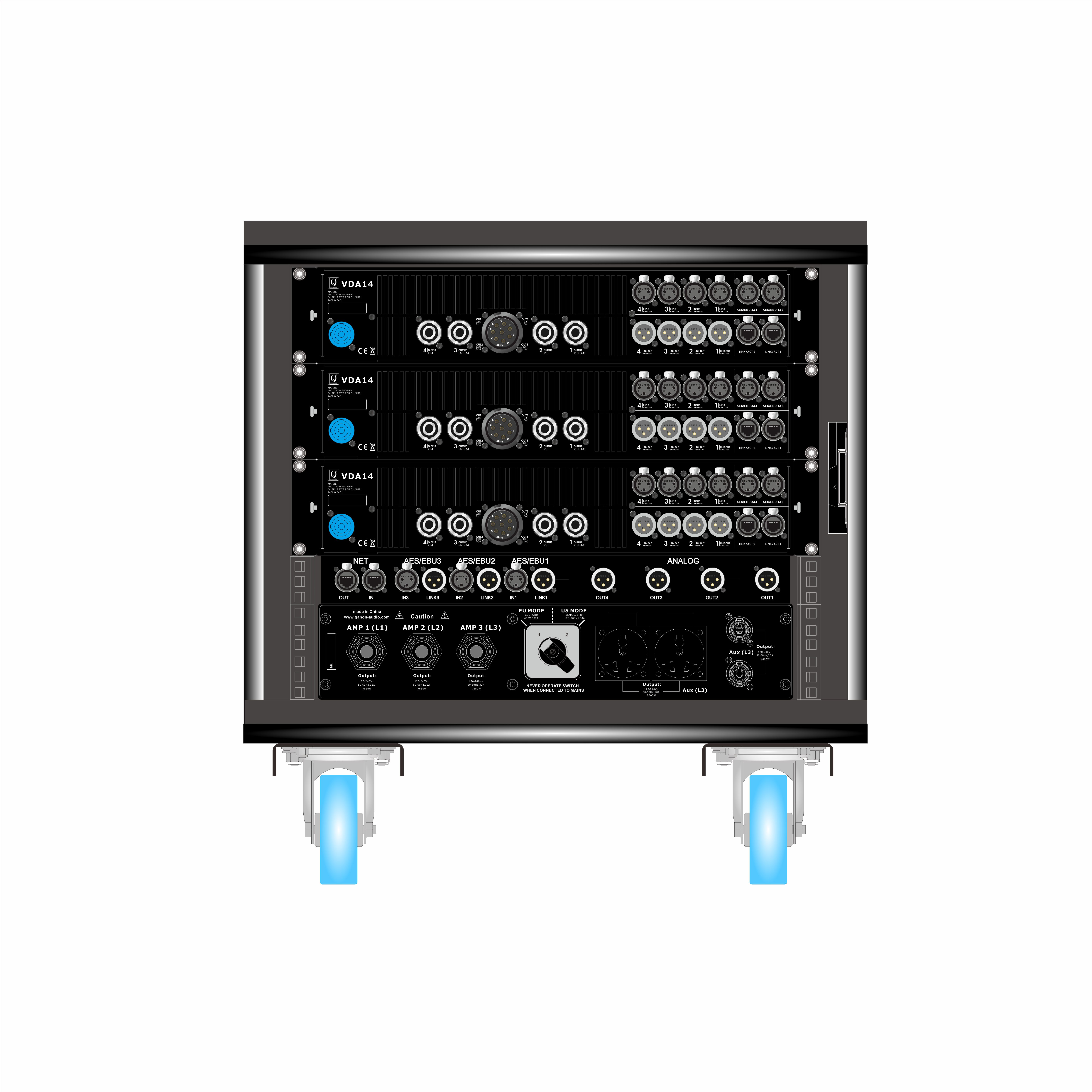

9U-Rack

The 9U Rack is a dual structure consisting of rubber shock absorbers, and the internal steel frame is supported by an external aluminum frame. This ensures that both front and rear doors are retractable to provide maximum protection and transport of electronic equipment within the rack.

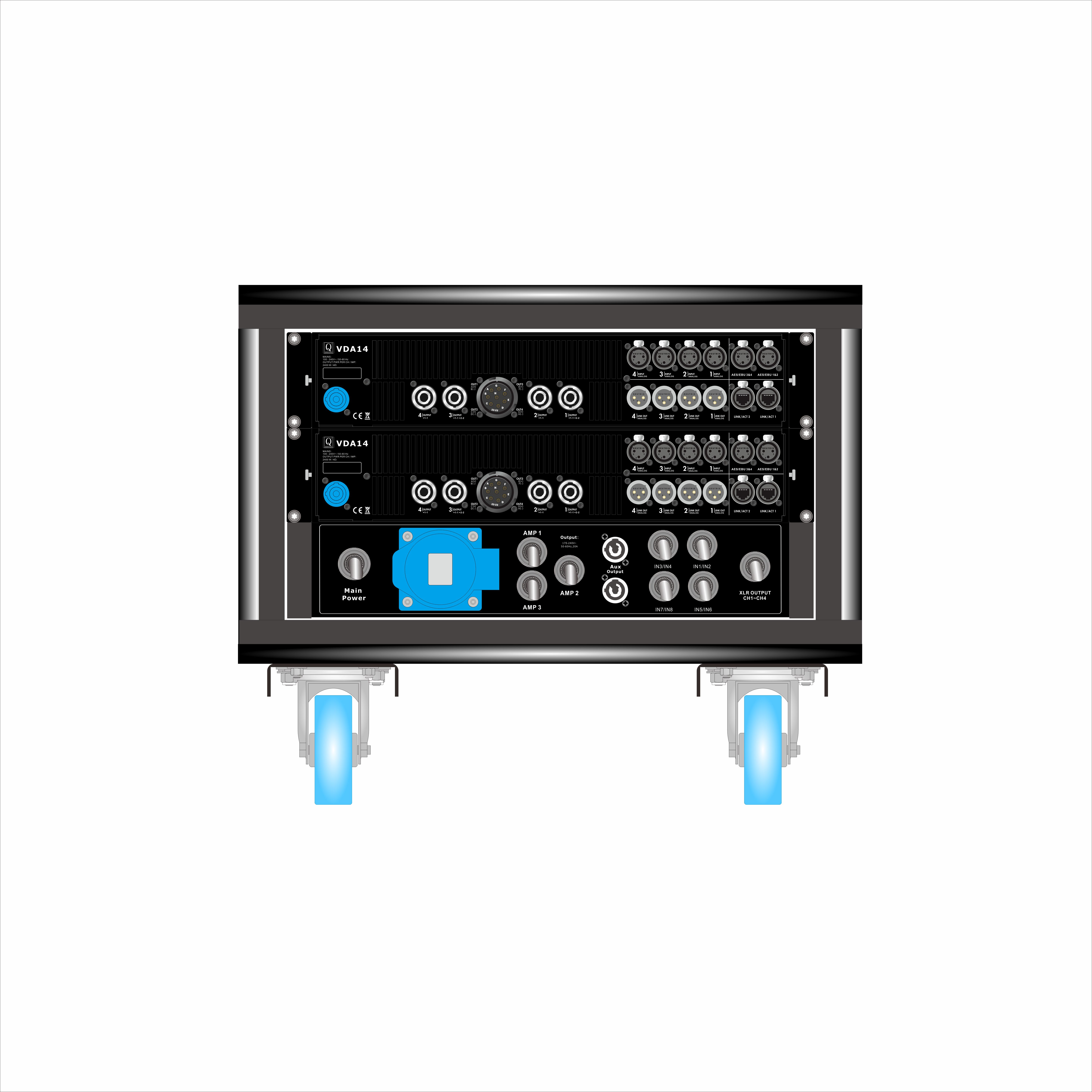

6U-Rack

The 6U rack is a dual structure made of wood, supported internally by a wooden frame and shock-absorbing cotton. This ensures transportation and maximum protection for electronic devices inside the rack, with two openable front and rear doors.
