| Amplification class | Class D |
| Output power CEA-2006 / 490A (1% THD, 1 kHz, all channels driven) | 4 x 700 W RMS (16 Ω) |
| 4 x 1400 W RMS (8 Ω) | |
| 4 x 2400 W RMS (4 Ω) | |
| 4 x 2000 W RMS (2.7 Ω) | |
| Digital Signal Processor (DSP) | SHARC 32-bit, oating point, 96 kHz sampling rate |
| Frequency response 20 Hz - 20 kHz | ± 0.1 dB（8 Ω 60 W output power） |
| ± 0.1 dB（4 Ω 120 W output power） | |
| Distortion THD+N (20 Hz - 10 kHz) | < 0.05%（8 Ω 60 W output power） |
| < 0.1%（4 Ω 120 W output power） | |
| Output dynamic range (20 H -20 kHz, 8Ω, A-weighted) | > 114 dB |
| Amplification Gain | 32 dB |
| Noise level (20 Hz - 20 kHz, 8 Ω, A-weighted) | < -68 dBV |
| Channel separation (at 1kHz , 3 x 120 W, 4 Ω) | > 85 dB |
| Damping factor | > 400（1 kHz 及以下，8 Ω） |
| Input delay | 0 ms 至 500 ms |
| Output delay | 0 ms 至 500 ms |
| Power supply | |
| Model | "Universal Switched Mode Power Supply (SMPS) with power factor correction (PFC)" |
| Power factor | > 0.9 (except Standby on all voltages, and Idle on 230 V) |
| Mains rating | 100 V - 240 V ~ ±10%，50-60 Hz |
| Voltage start range | 70-270 V 50-60Hz |
| Nominal current requirements | 200-240 V for 20 A |
| Protection | Over and under voltage、Temperature、Over current (fuse protection) |
| Power outputs | Over current、DC、Short circuit、Rail over and under、Temperature |
| Cooling system | fans with temperature-controlled speed |
| Interface and connections | |

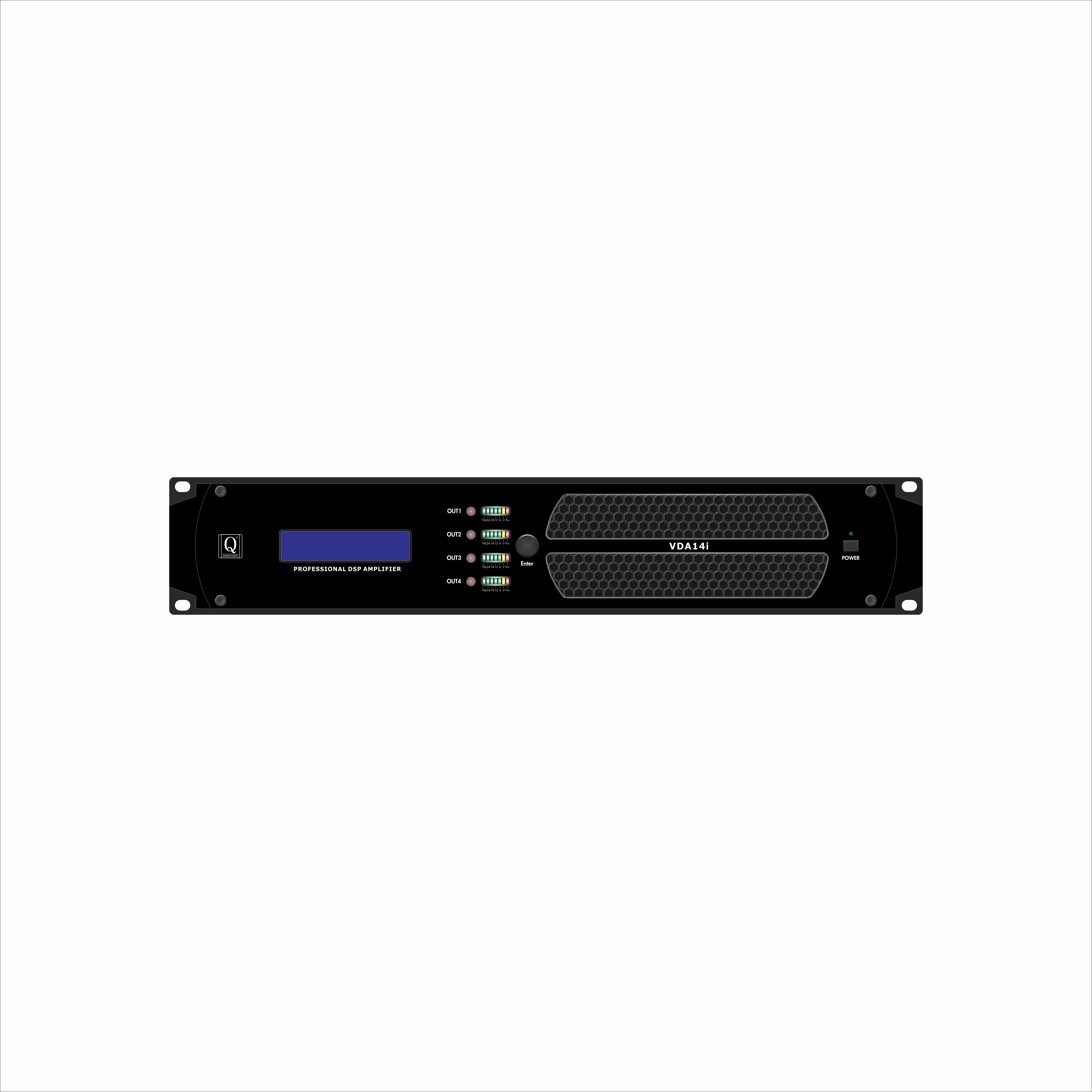

| Interface | 2x20 LCD Display |
| Indicators | For each output: 5 x LEDs for mute, load, signal, levels and limit/clip information |

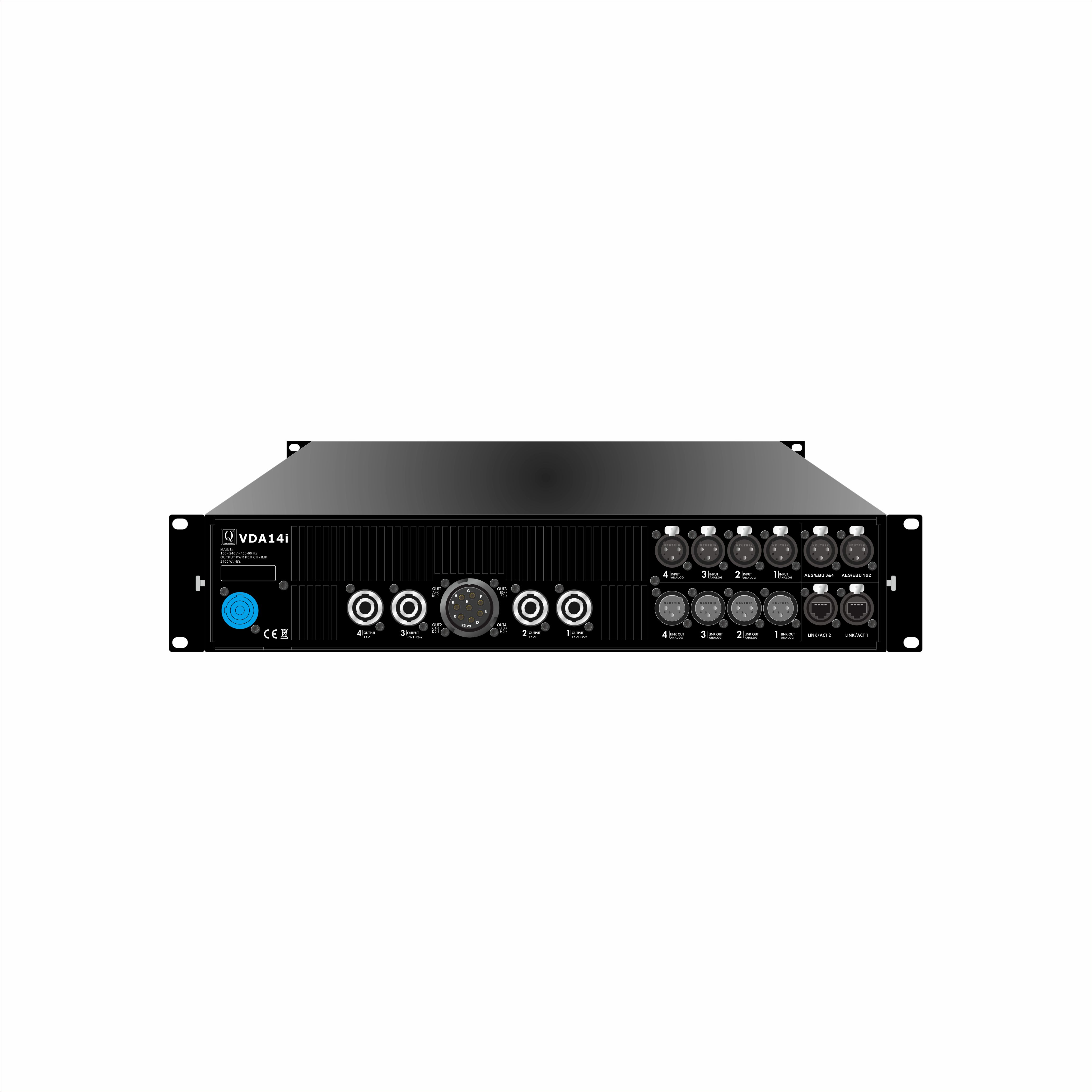

| Analog Input A/B/C/D | 4 Neutrik® female XLR3 |
| Analog Link A/B/C/D | 4 Neutrik® male XLR3 |
| Digital AES/EBU Input A&B / C&D | 2 Neutrik® female XLR3 |
| etherNet | 2 x 1 Gb/s RJ45 etherCON ® |
| Output connectors | 4 Neutrik® NL4 + 1 PA-COM® 8-Ponit |
| Link connectors | |
| Analog input mode | Passively connected |
| Digital input mode | Electronically buffered, fail safe relay |
| Analog input mode | |
| Input impedance | 22 kΩ (balanced) |
| Maximum input level | 21 dBu (balanced, THD 1%) |
| A/D conversion | 32-bit analog/digital converters (120 dB dynamic range) |
| Digital input mode / Supported operating mode | |
| Standards | AES/EBU (AES3) |
| Sampling frequency (Fs) | 44.1, 48, 88.2, 96, 176.4 or 192kHz |
| Word length | 16, 18, 20 or 24 bits |
| Synchronization | Signal resampled to internal clock at 96kHz |
| Input gain | |
| Range | -80 dB to +15 dB |
| Steps | 0.1 dB |
| Remote control and monitoring | |
| Network connection | Dual-port Ethernet Gigabit interface |
| QANON AUDIO Remote control software | VDA Controller |
| Physical data | |
| Dimensions（W x H x D） | 483 x 88 x 440 mm |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 14.5 kg / 32lbs |
