| Type | Columnar source |
| Frequency Response(Preset) | 130Hz-18kHz(-6dB) |
| Frequency Response(Preset) | 100Hz-20kHz(-10dB) |
| Horizontal | 90°（-6dB） |
| Vertical | 5°-25°（-6dB） |
| Drivers | LF：4×4"（Ferrite） |
| Handling Power (AES) | LF:160W |
| Maximum Peak SPL | 129dB/1m |
| Nominal Impedance | LF:8Ω |

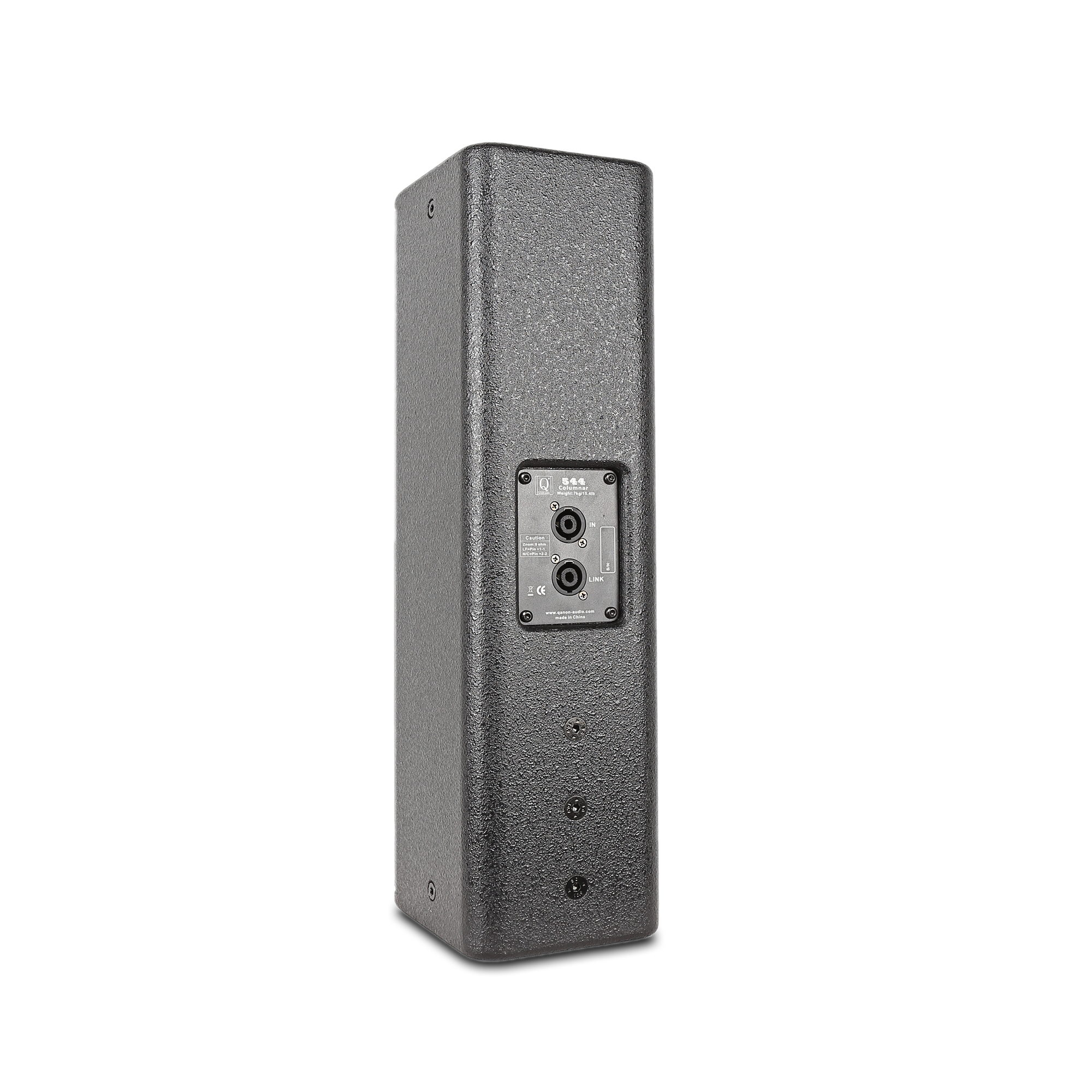

| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Height Front | 515mm |
| Height Back | 515mm |
| Width | 135mm |
| Depth | 160mm |
| Weight | 7kg / 15.4Ib |
| Rigging and Handling | |
| Threaded | 3x M8 threaded insert |
| Threaded | 4x M6 threaded insert |
| Pole socket | 1x 35mm Pole socket |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Black |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP45 |
