| Type | Columnar source |
| Frequency Response(Preset) | 145Hz-18kHz(-6dB) |
| Frequency Response(Preset) | 118Hz-20kHz(-10dB) |
| Horizontal | 90°（-6dB） |
| Vertical | 5°-25°（-6dB） |
| Drivers | LF：2×4"（Ferrite） |
| Handling Power (AES) | LF:80W |
| Maximum Peak SPL | 126dB/1m |
| Nominal Impedance | LF:16Ω |

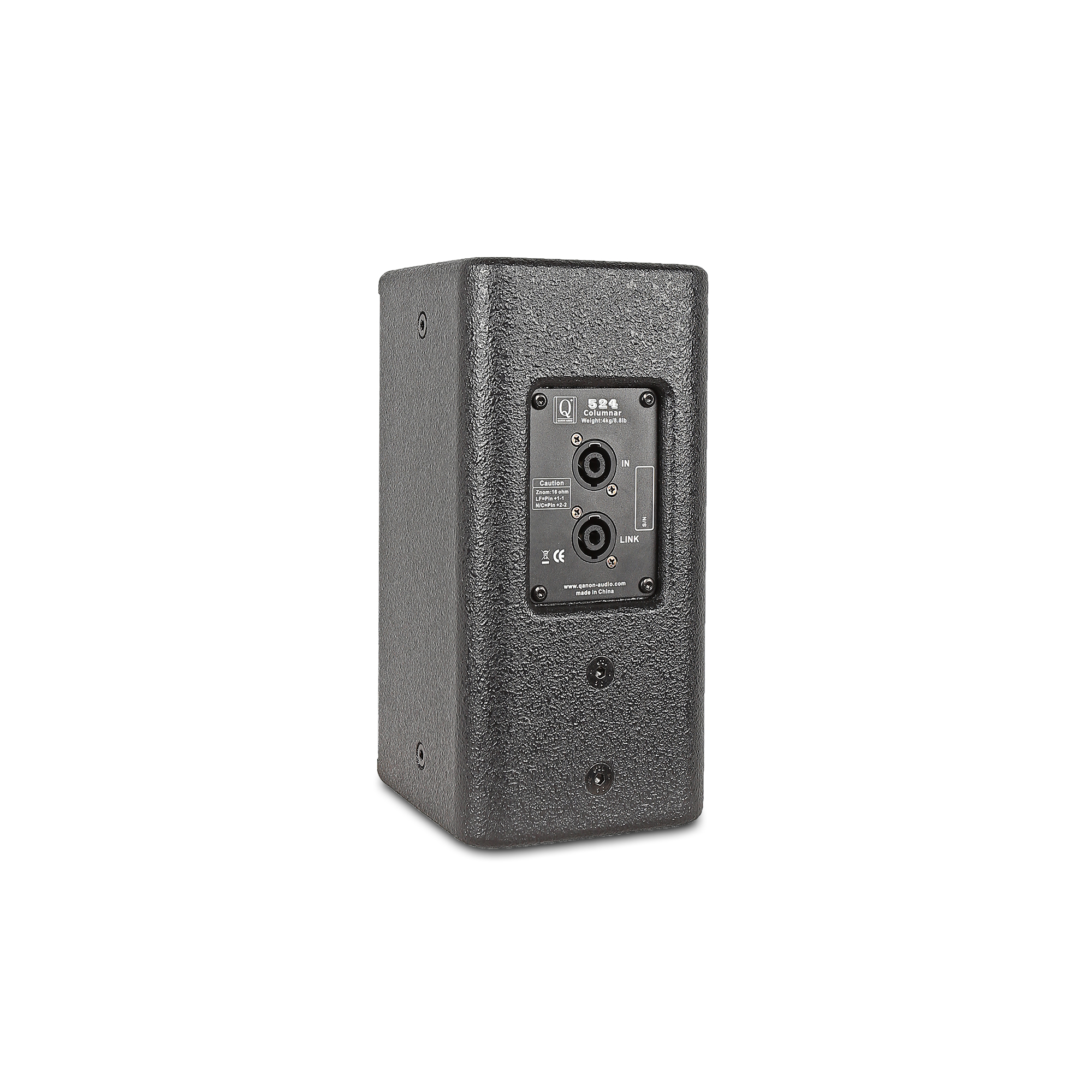

| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Height Front | 270mm |
| Height Back | 270mm |
| Width | 135mm |
| Depth | 160mm |
| Weight | 4kg / 8.8Ib |
| Rigging and Handling | |
| Threaded | 2x M8 threaded insert |
| Threaded | 4x M6 threaded insert |
| Pole socket | 2x M8 Pole socket threaded insert |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Black |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP45 |
